ULTIMATE TURNING POWER

P4 grade high precision bearings are directly assembled for maximum level of support. Bearing configuration is designed for super heavy-duty cutting and long term durability with a higher level of accuracy.

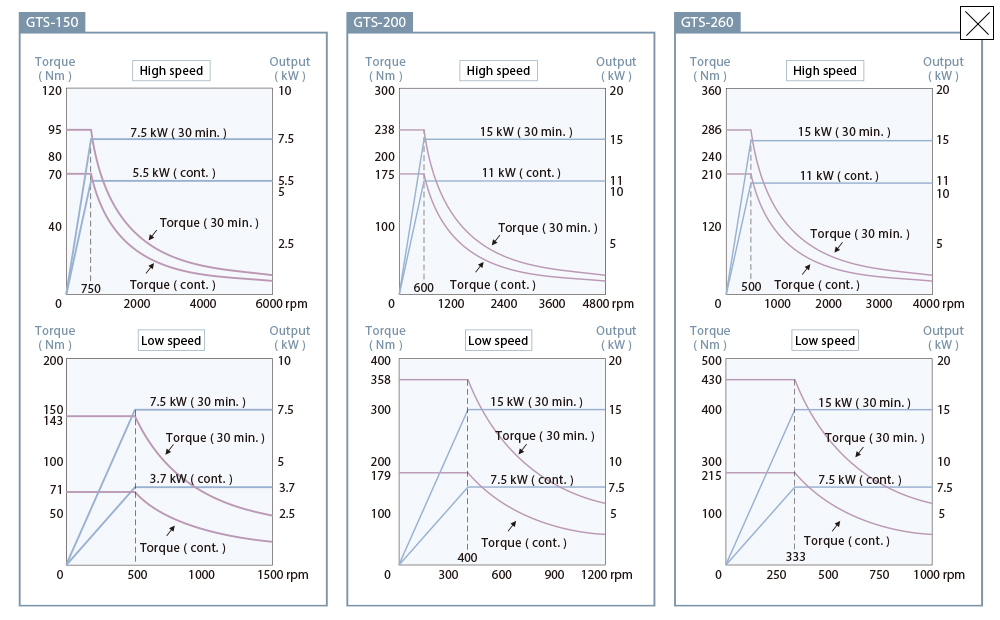

Generating twice the torque output of standard motors, the standard wide-range spindle motor is designed to reach full output at 1/2 the RPM of standard motors, providing the ability to take heavier cuts in the lower RPM ranges.

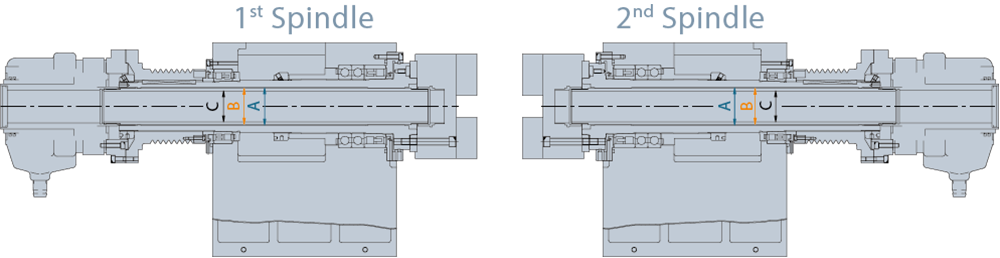

Unit:mm
A | B | C |
---|
GTS-150 | 61 | 50 | 43 |
GTS-200 | 66 | 65 | 52 |
GTS-260 | 76 | 75 | 66 |

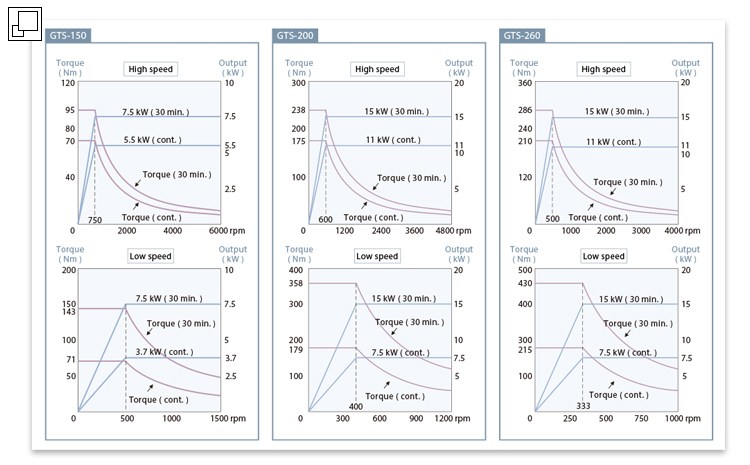

![[+]](../../../../images/turning/multi-axis/gts/spindle/torque_s_en.jpg)
