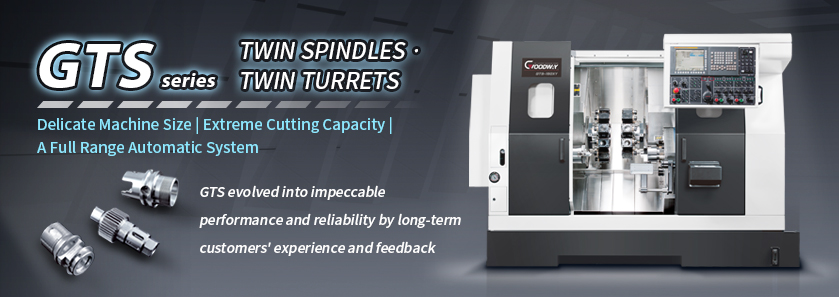

TWIN SPINDLES & TWIN TURRETS TURNING CENTER
| Left | Right | 6" Chuck | 8" Chuck | 10" Chuck |
|---|
| Turret | Turret | GTS-150X | GTS-200X | GTS-260X |
| Turret | Live Tooling Turret | GTS-150MX | GTS-200MX | GTS-260MX |
| Live Tooling Turret | Live Tooling Turret | GTS-150MMX | GTS-200MMX | GTS-260MMX |
| Y-axis | Y-axis | GTS-150XY | GTS-200XY | GTS-260XY |
Opposite twin turrets design on GTS, the 2nd spindle can move directly through Z2 guide way to 1st spindle to catch the parts which saves the floor space and the cost buying robot arm to flip the workpiece.
Compare to single turret type of machine can work one side machining only, the twin turrets design separately for OP1 and OP2 with different operation performs higher efficiency.
Compound function of optional live tooling turret, C-axis and Y-axis enable GTS series with the extreme cutting ability of 8 axes control and 4 axes simultaneously machining.
Compact Machine Size
Machine dimensions ( W x D )
GTS-150：3,135 x 1,700 mm
GTS-200：3,900 x 1,940 mm
GTS-260：3,900 x 1,940 mm
Plenty of Space For Operator
Door Full opened width.
GTS-150：820 / 805 mm ( T12 / T6 )*1
GTS-200：1,065 mm
GTS-260：1,065 mm
*1 : Please see page live tooling turret for detail of turret type
Convenient Working Distance
Distance from the center of spindle to door guarding.
GTS-150：459 mm
GTS-200：394 mm
GTS-260：394 mm
