MAXIMUM PERFORMANCE CNC TURNING CENTERS

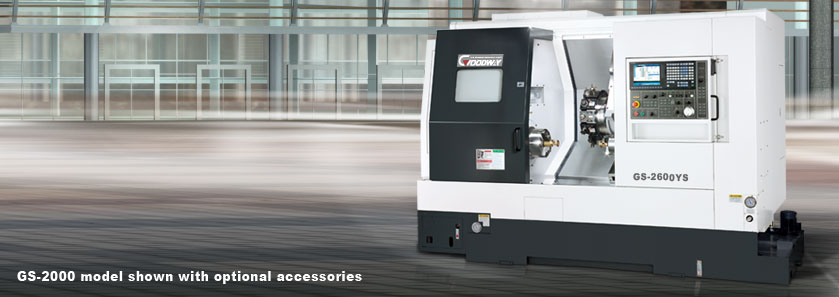

Packed with industry leading technology and top quality compoonents, the GOODWAY GS-2000 series turning centers combined incredible power, strength, and speed to bring you The Ultimate Machining Power ®. These powerful maximum performance machines will easily accopmlish the demanding turning applications of today and tomorrow. Furthermore, with available live tooling ( 2 options available ), C-axis, Y-axis, and sub-spindle capabilities; milling, drilling, and front / back-end turning applications may be completed in one single machine.

Live Tooling *1	Ⅰ	Ⅱ
Max. turning diameter	Ø 15.74" ( 400 mm )	Ø 18.11" ( 460 mm )
Driver motor	Built-in type motor	Servo motor
Live tooling shank size	Ø 1.02" ( 26 mm ) ( ER40 )	Ø 0.78" ( 20 mm ) ( ER32 )

*1.Individual models may vary, please see "Specifications" page.

30° slant-bed design provides smooth chip disposal and easier operator access.

Stainless steel way covers and special steel wipers molded with industrial strength rubber are used for durability.

Fully enclosed splashguards keep chips and coolant contained for a safe clean working environment.

The auto lubrication system delivers metered amounts of lubrication to the slide ways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.
