ULTIMATE TURNING POWER

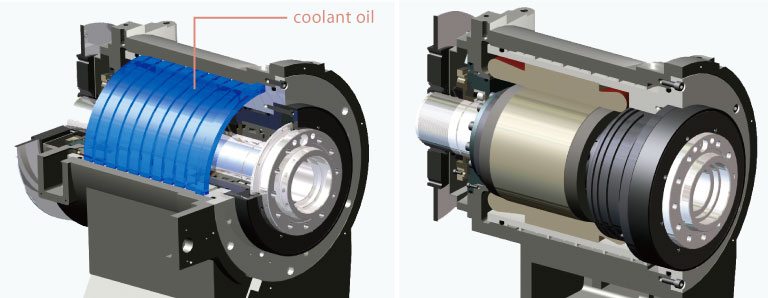

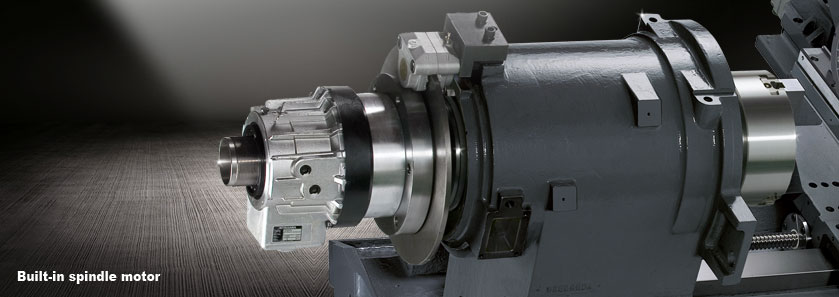

GS-2000 series equipped high precision, high speed built-in spindle motor which can save spce and increase turning capacity. Furthermore, it can eliminates power lose because of V-Belt and get the best output. The advanced design which combined spindle and coolant housing to be one. Easy assembly and high efficient are achieved.
Top![[+]](../../../../images/turning/horizontal/gs-2000/spindle/gs-2000-spindle-output.gif)
Cutting Test : GS-2600YS Model
| Process | Tool | Spec. | Conditions | Material | Ap. | ||
|---|---|---|---|---|---|---|---|
| Vc ( m/min. ) | Fn ( mm / rev. ) | Rpm | |||||
| O.D heavy cutting | Turning tool | --- | 120 | 0.4 | 347 | S45C | 7 |
| Drilling | U-drill | Ø 58 | 100 | 0.3 | 549 | S45C | --- |
| Turning | Turning tool | Diamond coated insert R0.5 | --- | 0.05 | 4,000 | BRASS | --- |
| Milling | Face Mill | Ø 50 | 220 | 0.2 / 1,400 | 1,400 | S45C | --- |
| Milling | Rough end mill | Ø 20 | --- | 0.1 / 260 | 640 | S45C | 15 |
| Drilling | Drill | Ø 23 HSS | 25 | 0.3 | 345 | S45C | --- |
| Tapping | Tap | M20* P2.5 HSS | 10 | 2.5 | 160 | S45C | --- |
Specifications are subject to change without notice.
