ULTIMATE TURNING POWER

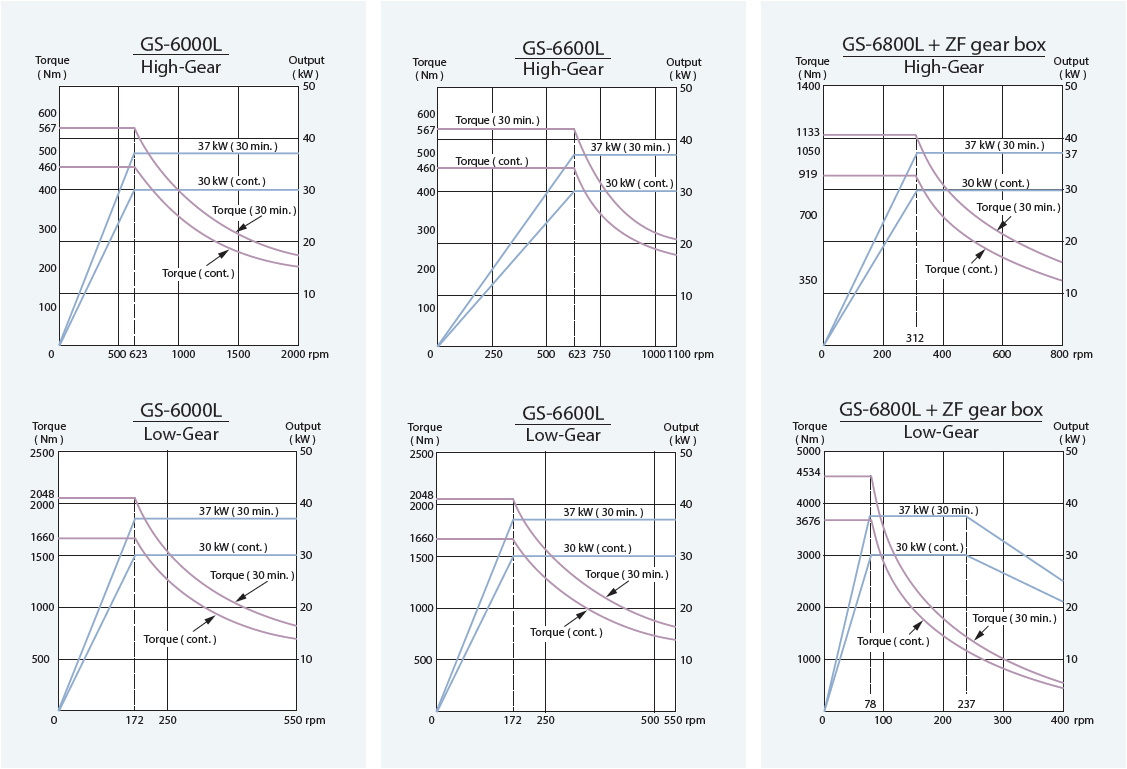

With over 2,048 Nm of torque available on the low speed of the 2-speed gear head, turning tough material with big diameter is now a simple task.

Working with the living tooling turret, the CF-axis and disk brake system enables the machine to Perform multiple tasks, such as drilling, tapping, and milling operations including cylindrical and polar coordinate interpolations, resembling a 4th-axis rotary table on a machining center.

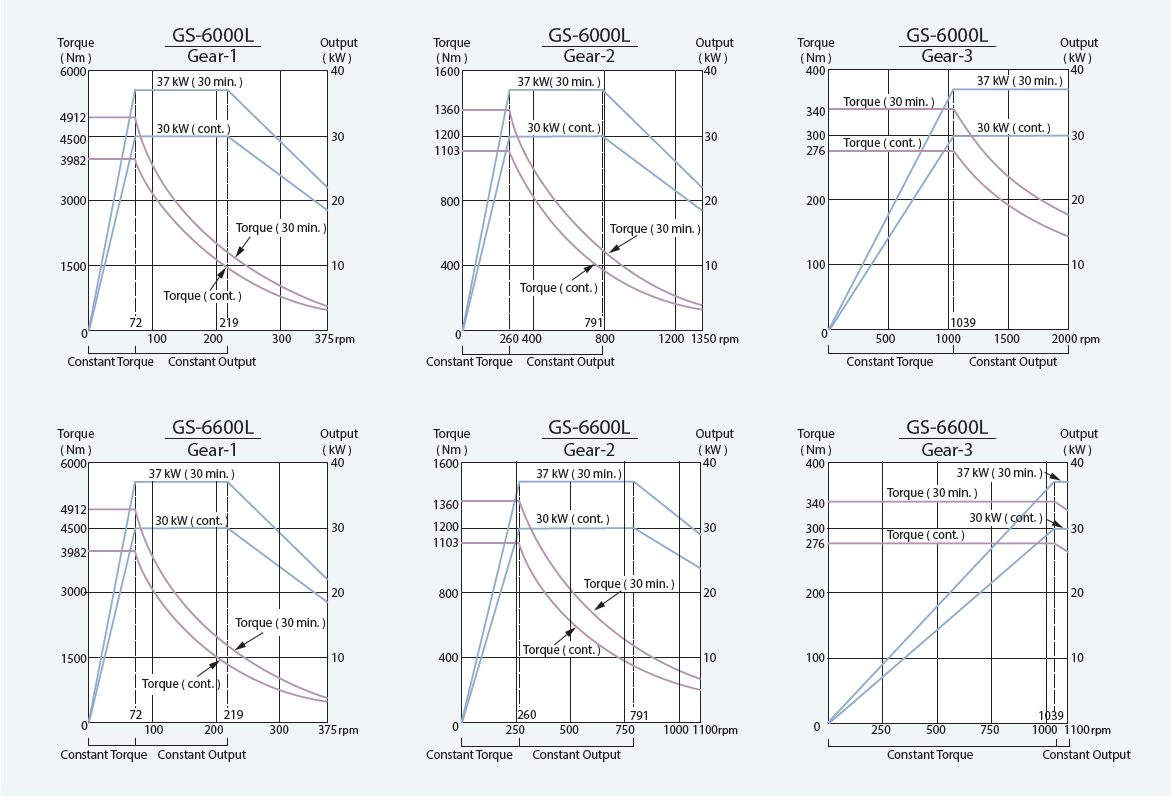

ZF Gear Box ( Opt. )

GS-6000L series standard with 2-step gear box and an optional oil bath German made ZF gear box is also available. Both can provide tremendous of low-end torque to handle heavy material removal on large diameter parts.
