High Speed Turning Center  GLS-2800 / 3300 Series

HIGH SPEED CNC TURNING CENTERS

With the latest machine tools technology and high quality components, GOODWAY brings you the new GLS-2800 / GLS-3300 series high speed CNC turning center. This series is based on high precise linear guide ways and featured big bore, high power, fast cut and more to provide you machining solution with high efficiency cutting power. Besides, The GLS-2800 / GLS-3300 series equipped with an optional live tooling turret, C-axis, Y-axis and sub-spindle, G.LINC 350 intelligent control system and various automation equipment to reach a complete series and easily meet your machining needs of today and tomorrow.

GOODWAY HIGH SPEED CUTTING SERIES


big_bore

Model Chuck size Bar capacity
GLS-150 6" ( Big bore ) Ø 51 mm
GLS-1500 6" ( Big bore ) Ø 51 mm
GLS-200 8" ( Big bore ) Ø 65 mm
GLS-2000 8" ( Big bore ) Ø 65 mm
GLS-2800 10" Ø 75 mm
GLS-3300 12" Ø 90 mm

Please contact GOODWAY for detailed information.

Equipped with an optional live tooling turret, C-axis, Y-axis and sub-spindle and other advanced features allows GLS-2800/3300 can work on turning, milling, drilling, tapping and off-center milling tasks. The machining capability equals the integration of turning center and machining center, which significantly lowers machining cycle time and manpower, and also prevent accuracy error of switching work-piece to another machine.

true_slant_bed
TRUE SLANT BED STRUCTURE The 30º true slant bed design provides superior support and heavy cutting ability, also excellent chips removal and convenient loading process.
linear_guide
HIGH SPEED LINEAR GUIDE WAYS X / Z axes and Y-axis ( opt. ) utilize the high speed high precise linear guide way design to provide the optimal motion and efficiency.
high_power_ spindle

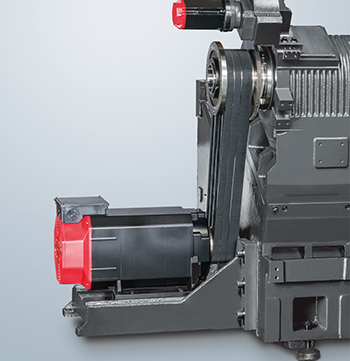

HIGH POWER SPINDLE 18.5 kW high power motor ( GLS-3300 ) with spindle torque output up to 757 Nm, which can easily overcome all kinds of different materials.
g_linc
INTELLIGENT SYSTEM
( OPT. )
Advanced GOODWAY G.LINC 350 intelligent system combines high class hardware and complete intelligent assisting features which can make machine smarter.
