GV-500 High Speed
Vertical Turning Centers

Space-saving vertical lathe designed
for compact workshops

Chuck size 12" / 15"
Max. turning diameter Ø620 mm
Max. turning height 520 mm

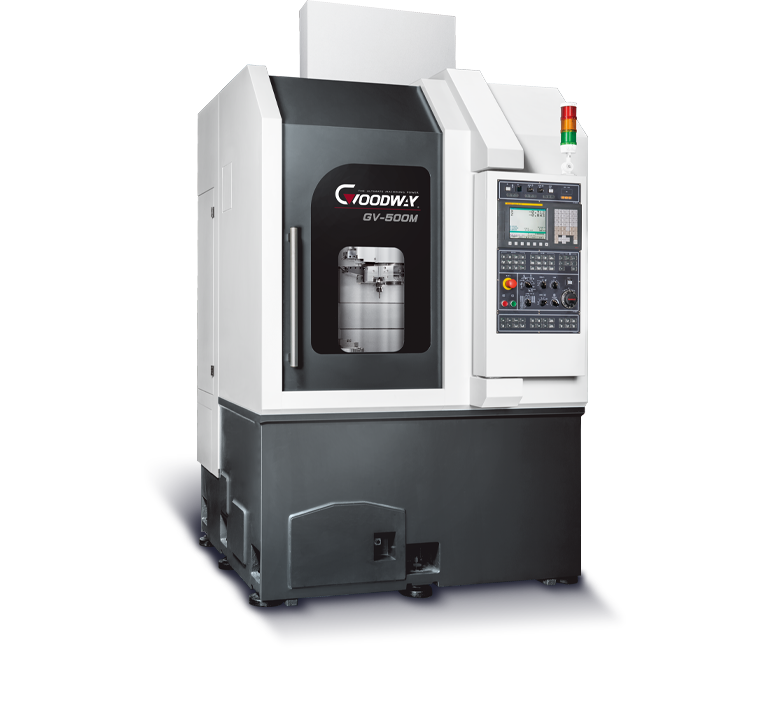

GV-500

Packed with the latest machine tools technology and high precision turning capabilities, the GOODWAY GV-500 series high speed vertical CNC turning center combines a super rigidity structure and precision linear guideways with a servo indexing turret and powerful spindle ( max. torque up to 883 Nm ). These series features a compact machine size with heavy duty turning capabilities, meet your needs of today and tomorrow.

    Features

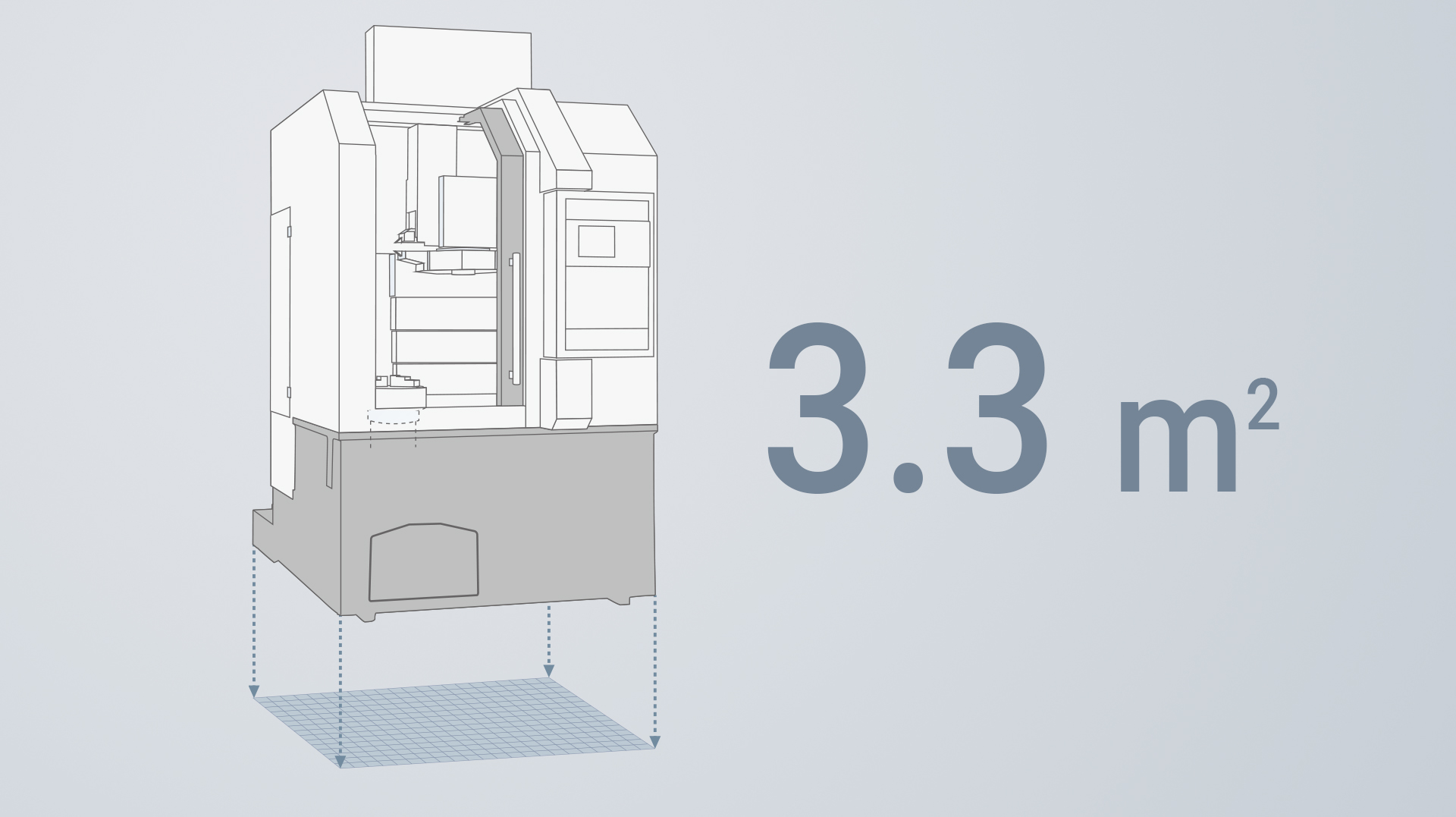

  • Extremely compact 3.3 m2 footprint.

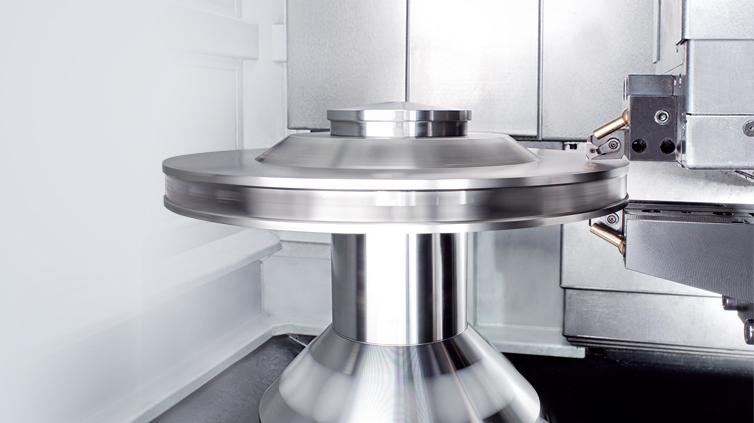

  • Offers excellent machining capability and efficiency for small-sized disc parts.

    • High Rigidity Structure

  • The base and column are integrally formed Meehanite castings.

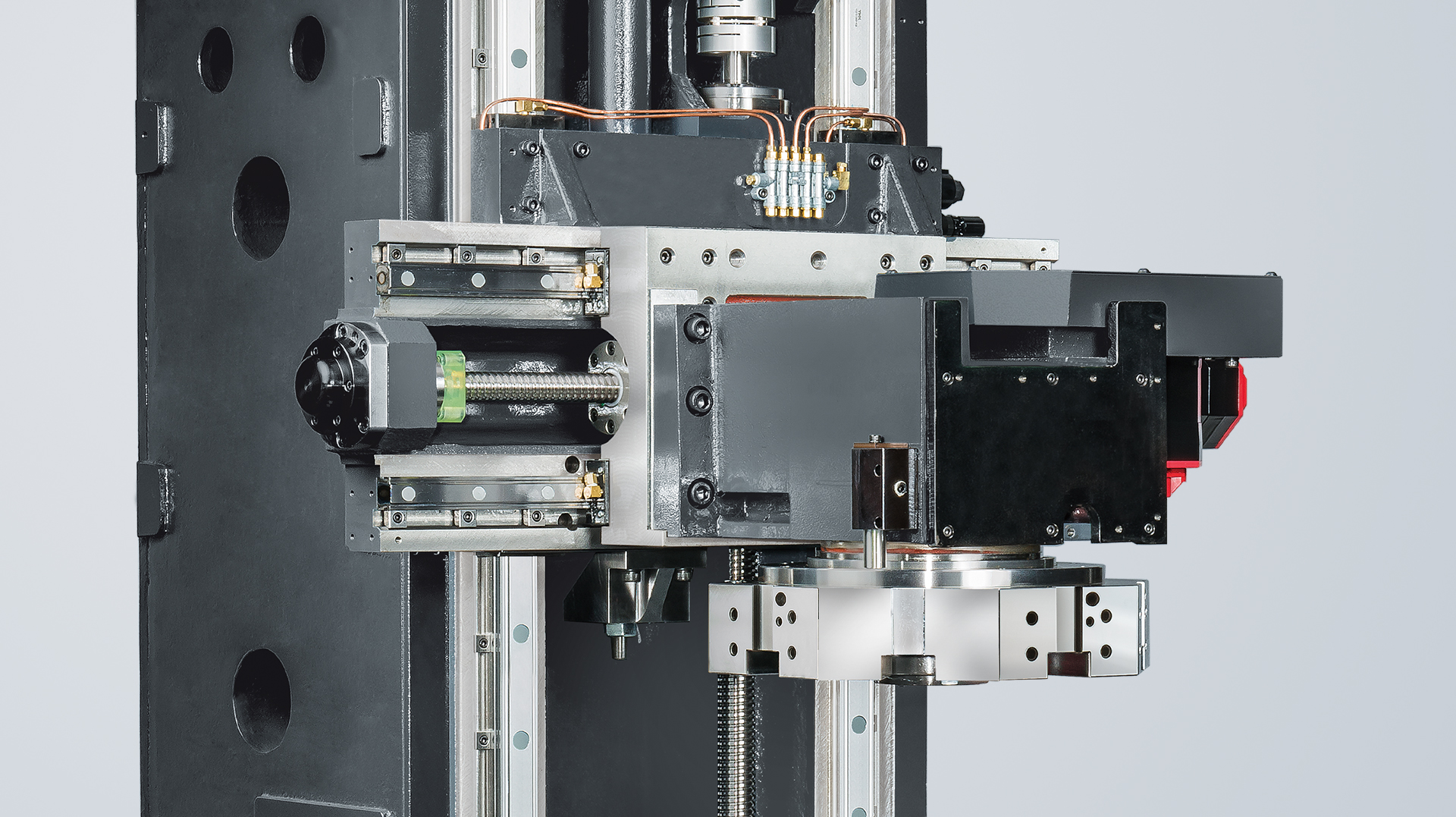

  • High precision linear guide way design is used in X and Z axes to provide the optimum control and efficient movement.

    • The Ultimate Machining Power

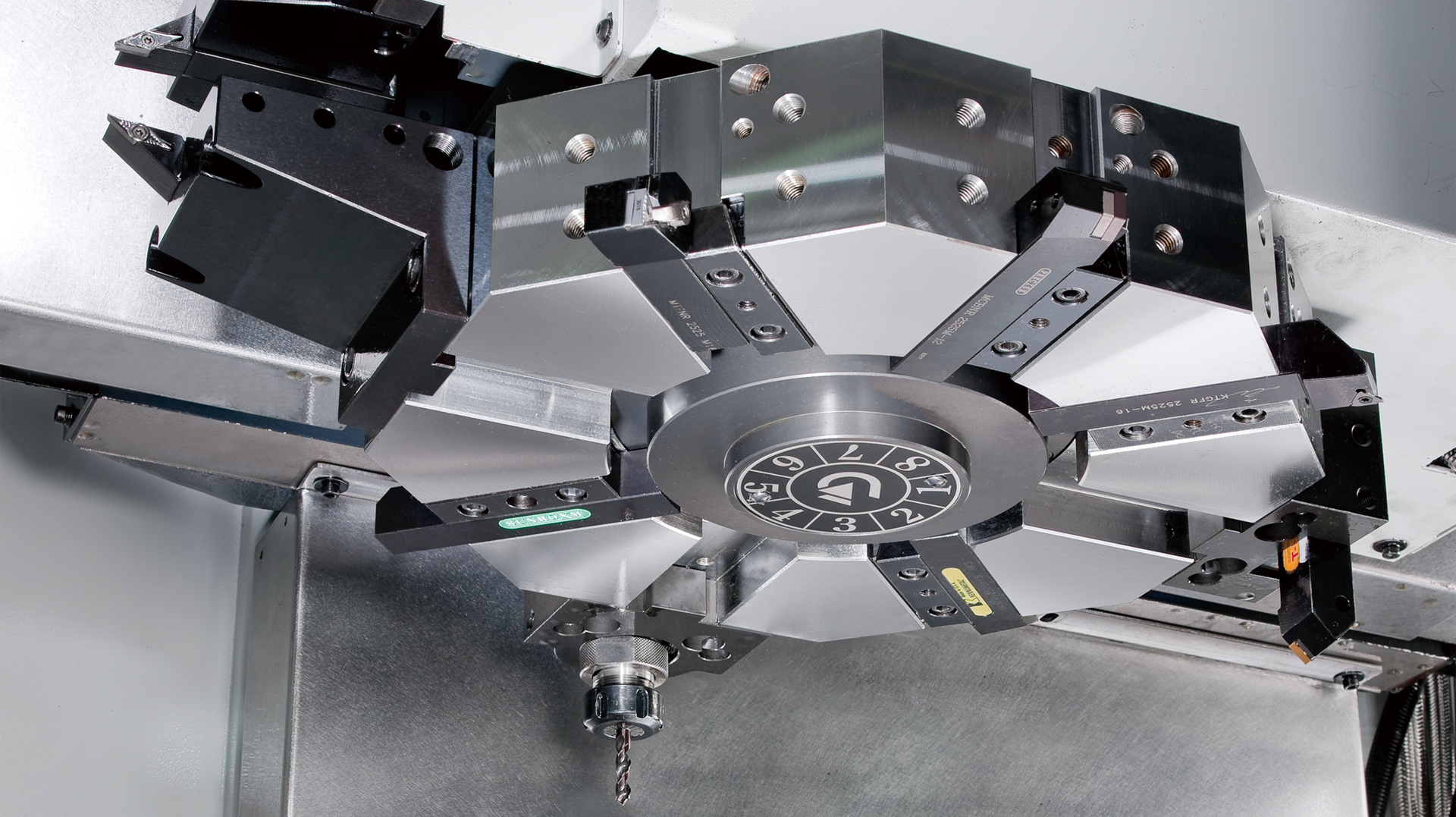

  • 8 or 12-station servo indexing turret provides rapid tool indexing and excellent cutting rigidity.

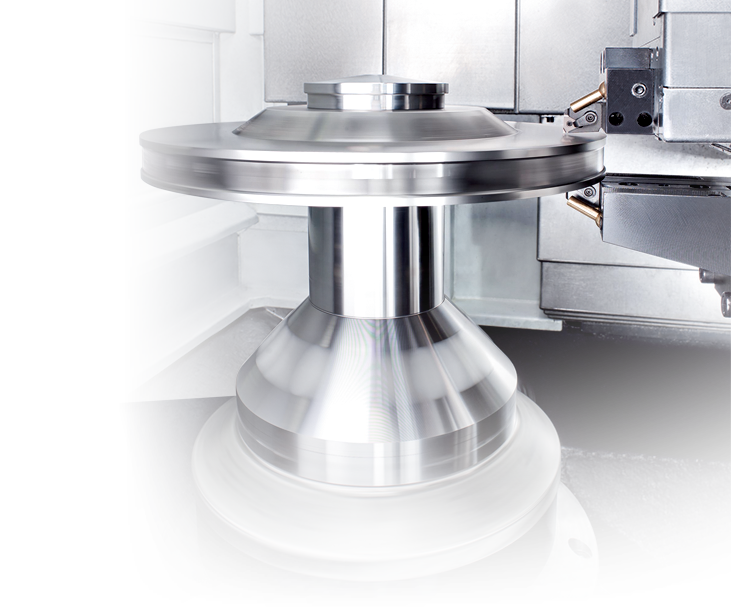

  • The GOODWAY dual-face turning holder allows both sides of a work-piece to be machined at the same time while, ensuring parallel precision of the surface.
  • With an optional live tooling turret and C-axis, the GV-780 series is capable of performing turning, milling, drilling, and tapping operations on a single machine.

    • High-performance Spindle

  • 3,000 rpm high-performance spindle design.
Compact footprint
High speed linear guideways design (X/Z axes)
8-station servo indexing turret
Balanced cutting
Live tooling turret
C-axis

Live Tooling Turret

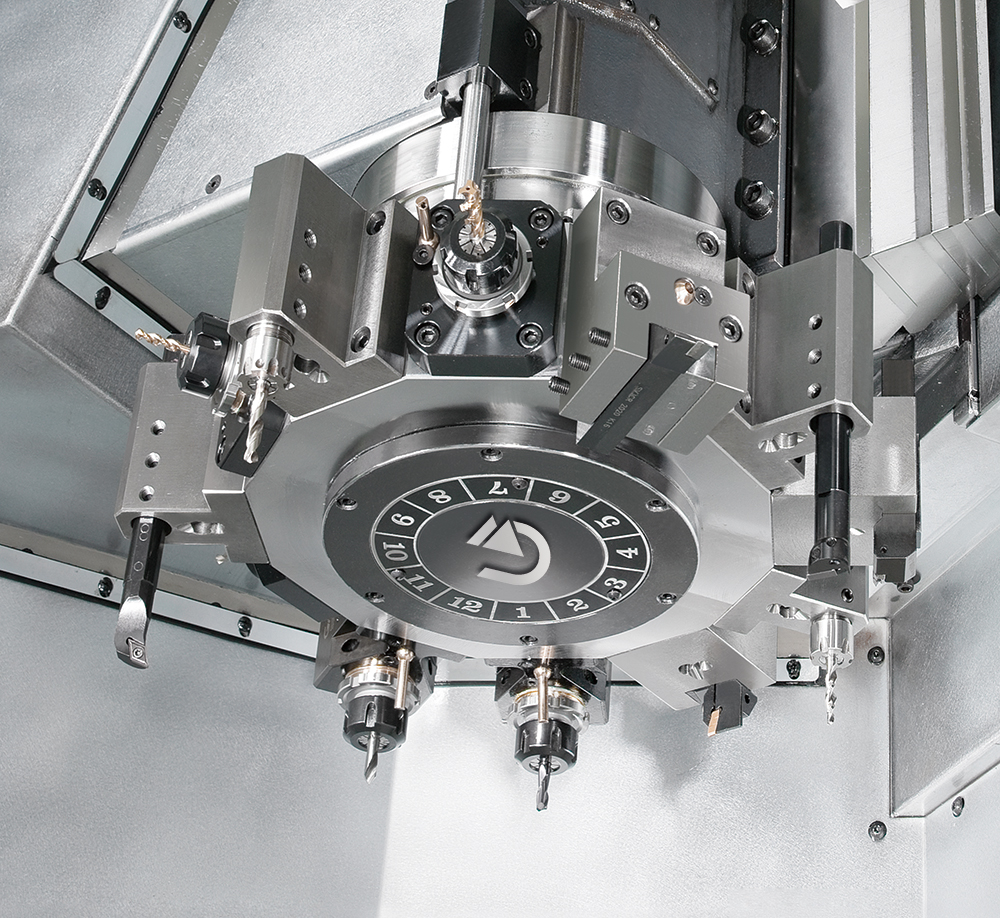

  • The 12-station GOODWAY live tooling turret offers 12 stations available for live tooling ( live tooling tools rotate in working position only ) and features a non-lifting turret disk.
  • GOODWAY live tooling turret utilizes advance servo indexing technology to achieve 0.2 second indexing times for adjacent stations and 0.5 second for stations at the opposite end of the disk.

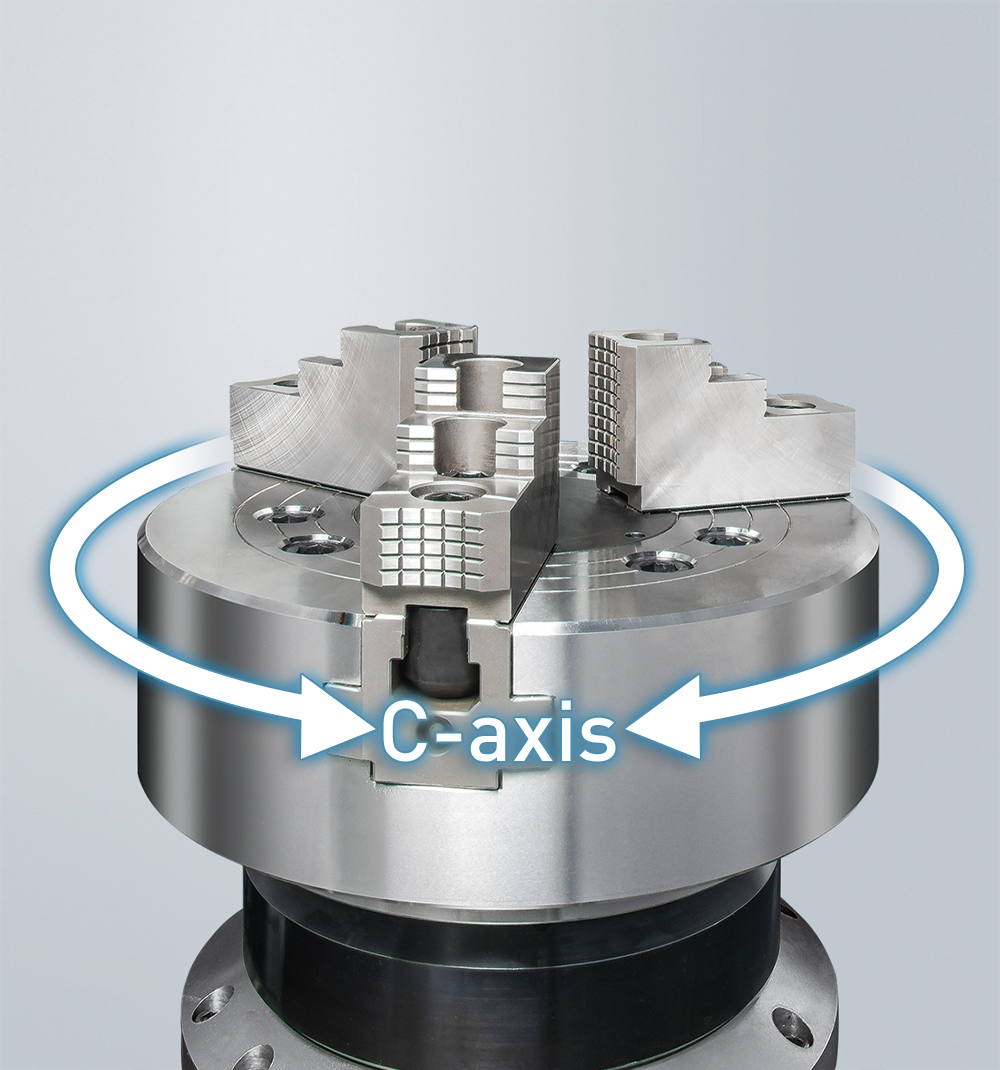

C-axis

  • Live tooling turret and C-axis control capabilities allows the GV-500 series to perform multi-tasks on a workpiece, such as turning, milling, drilling and tapping. This eliminates manpower and cycle time, while reducing accuracy lost, which will occur if the part is moved from machine to machine.
GV-500
GV-500
CAPACITY
Chuck size 12" / 15"
Max. swing diameter mm Ø650
Max. turning diameter mm Ø620
Max. turning height mm 520
SPINDLE
Spindle motor output
kW ( cont. / 30 min. )
Low-speed 11 / 18.5
High-speed 15 / 18.5
Spindle torque
Nm ( cont. / 30 min. )
Low-speed 525 / 883
High-speed 498 / 614
X / Z AXES
Max. X-axis travel mm 350
Max. Z-axis travel mm 550
X / Z axes rapids m/min. 24
TURRET
Stations T 8 / 12
OD tool shank size mm □ 25 / □ 32
ID tool shank size mm Ø50
LIVE TOOLING TURRET ( opt. )
Stations T 12
Spindle motor output kW 4.5
RPM range rpm 40 ~ 4,000
GENERAL
Standard CNC control FANUC Oi-TF Plus
