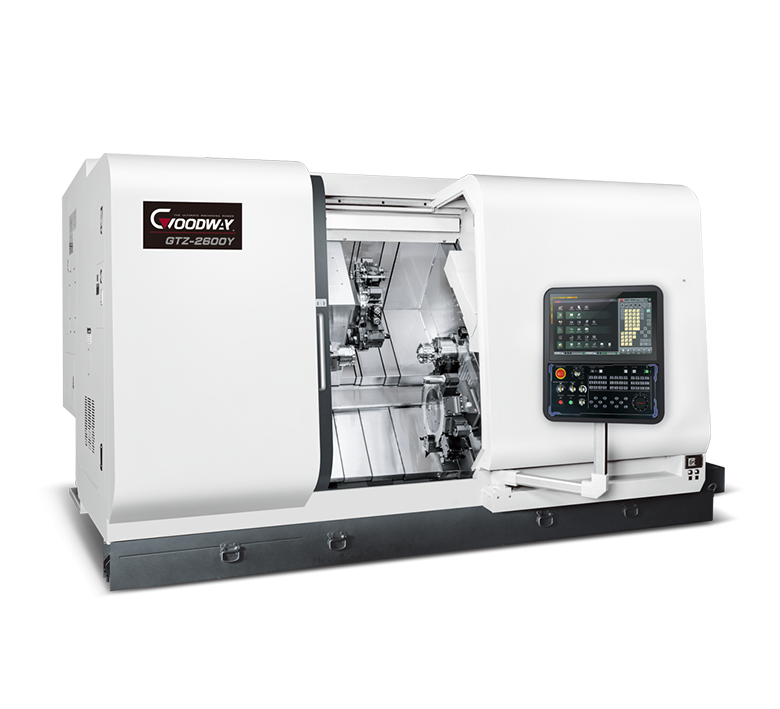

GTZ-2600
When facing a dilemma of maintaining a highly efficient production while processing extremely complicated machining parts, GOODWAY GTZ-2600 series is your best solution. Equipped with twin spindles and upper & lower twin turrets, this model is advanced in its design: with each turret that allows for flexibility to support any spindle during processing, its productivity is doubled compared with that of traditional models. Meanwhile, with its capacity to install a maximum of 24 tools for each turret, as well as the Y-axis control function, GTZ-2600 is capable of processing any complex part. Its powerful machining ability meets all your needs, today or in the future.
- Twin spindles with upper and lower turret design; the upper turret can be optionally equipped with Y-axis control.
- Ample machining range to meet most mass production requirements.
- Super rigidity one-piece 45° slant bed structure.
- The axial guideways adopt a high-precision linear guide ways design, providing excellent controllability and support rigidity.
- Turret capacities of 12 or 24 stations allow a single machine to be equipped with up to 48 tools.

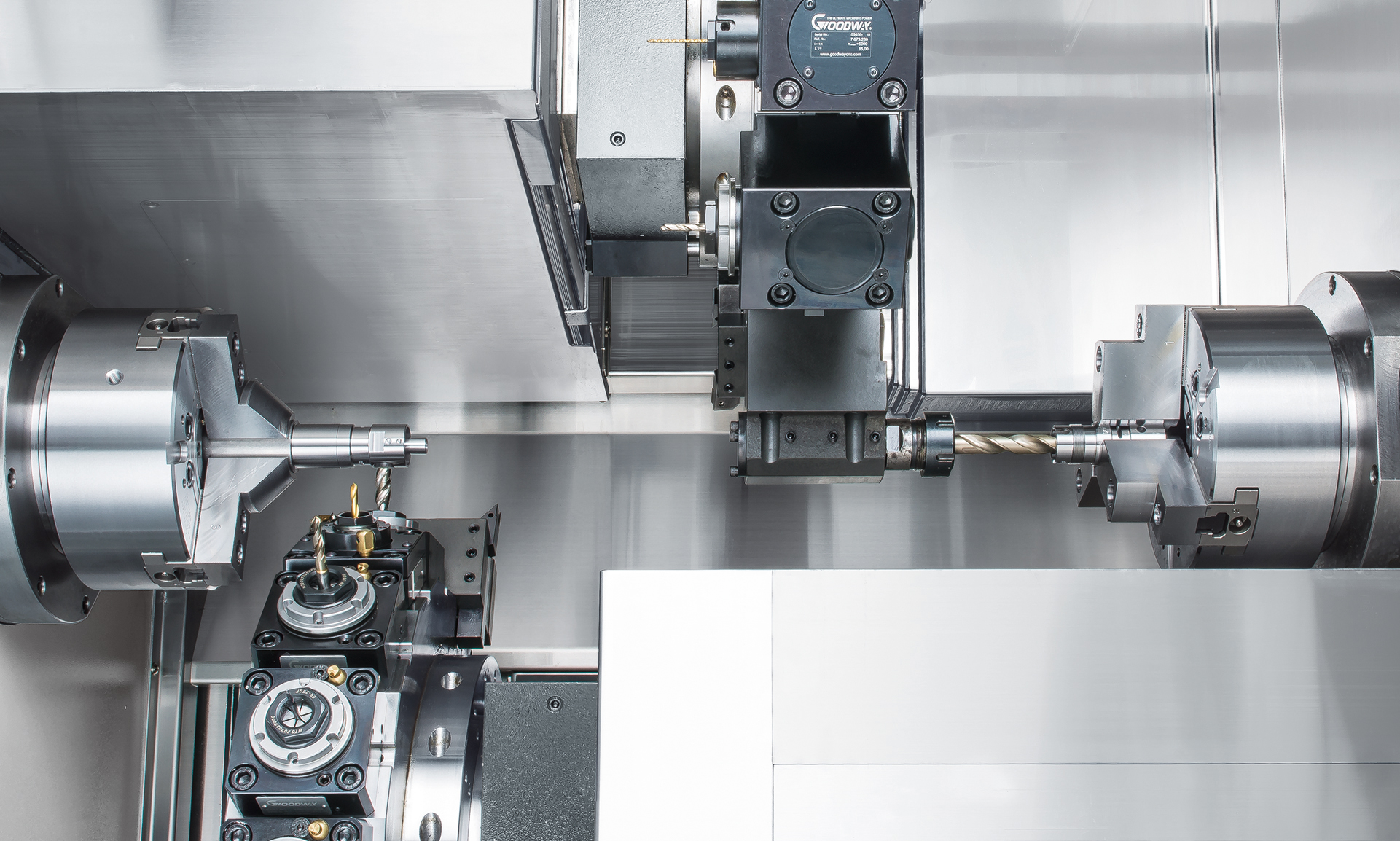

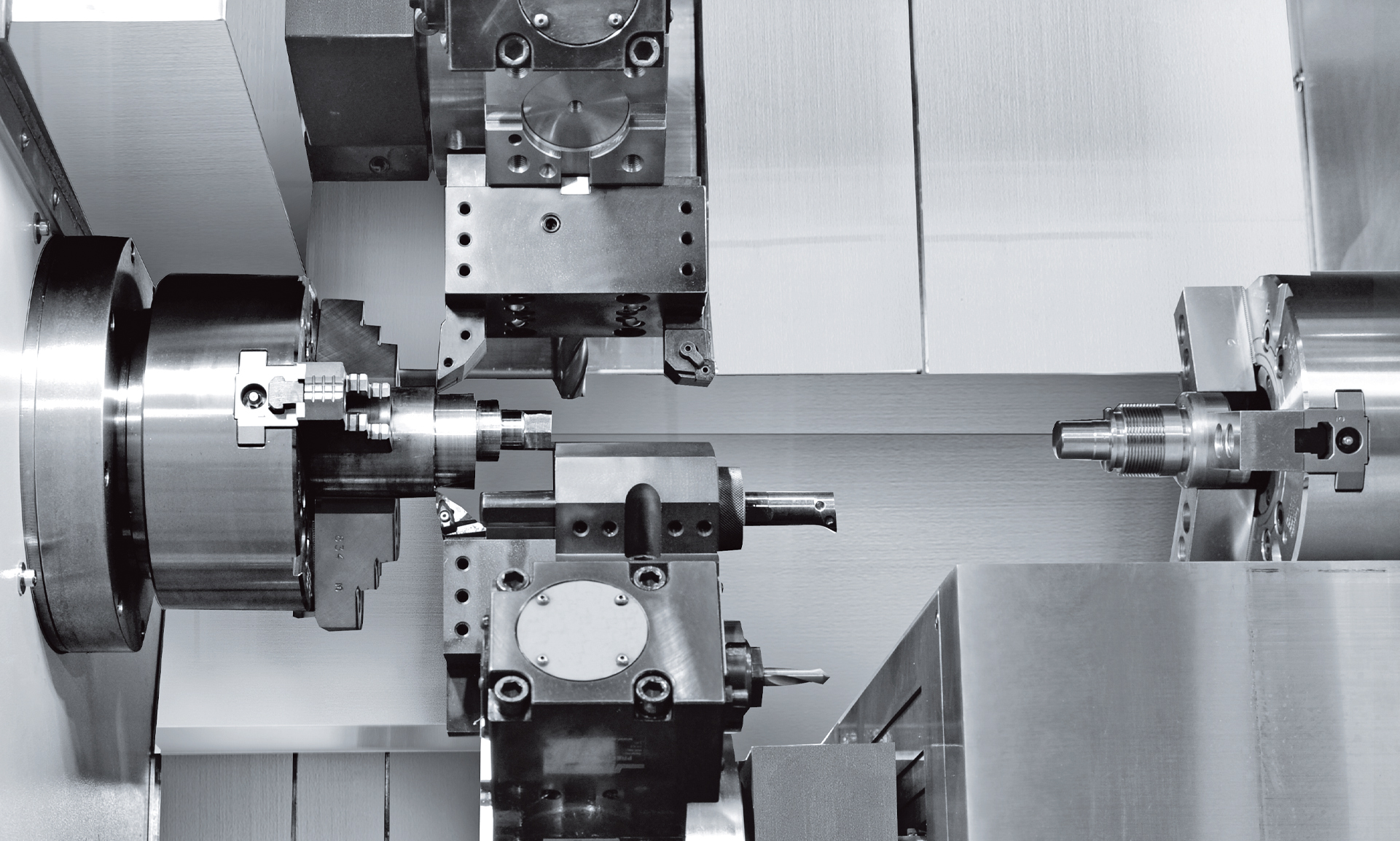

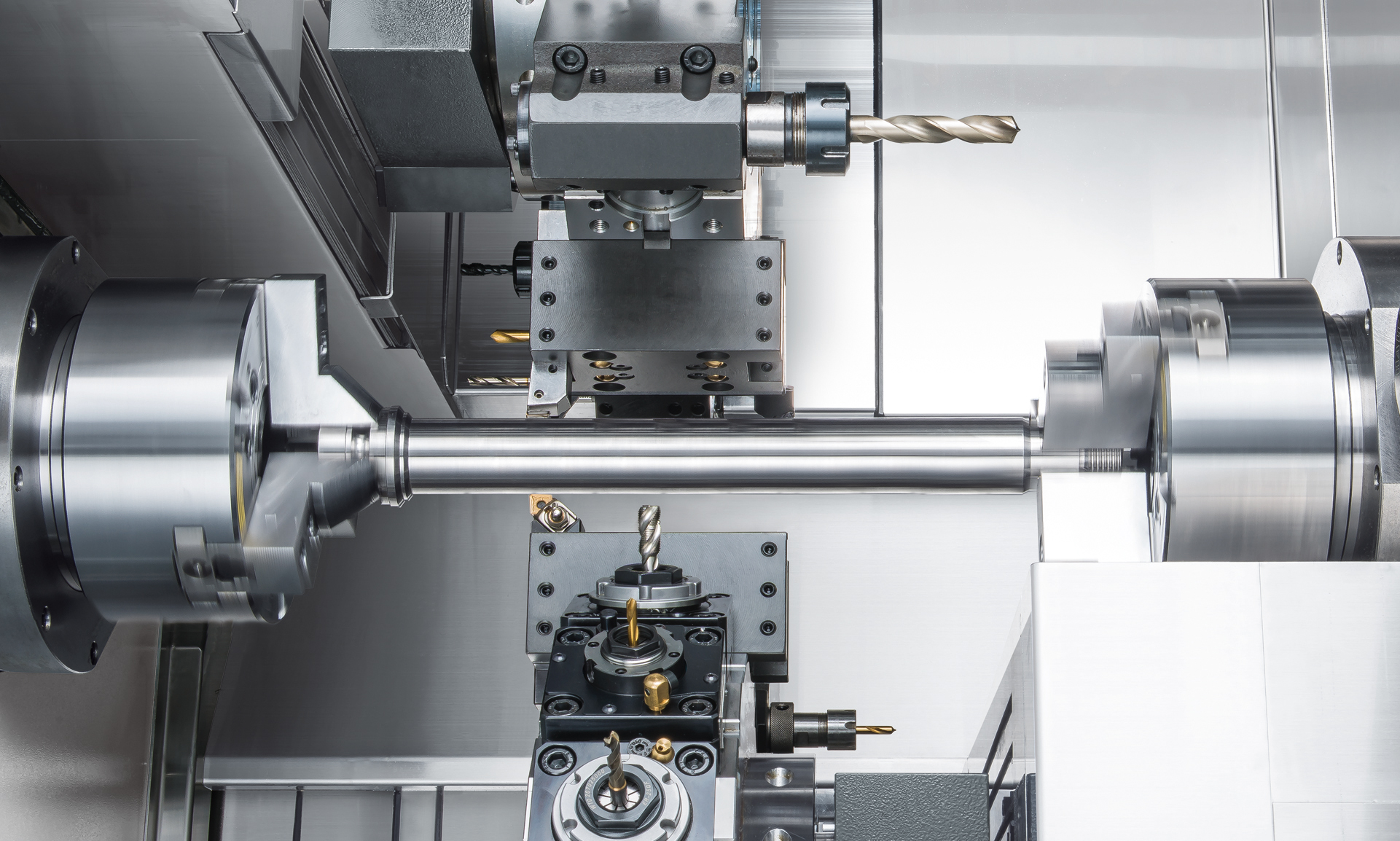

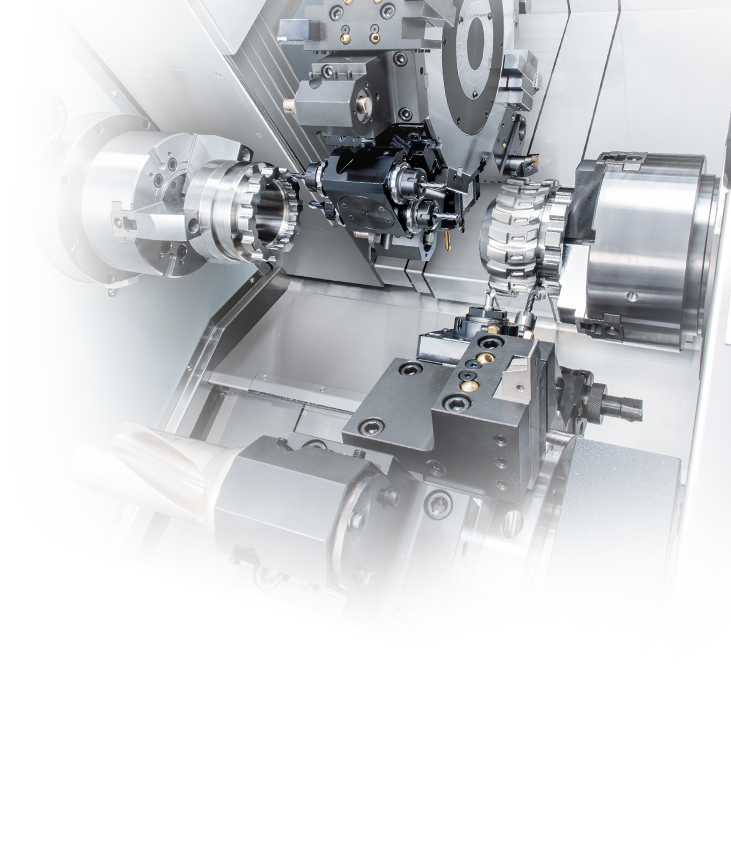

- Upper and lower turrets can independently support either the spindle 1 or 2 and are capable of synchronized balanced cutting.

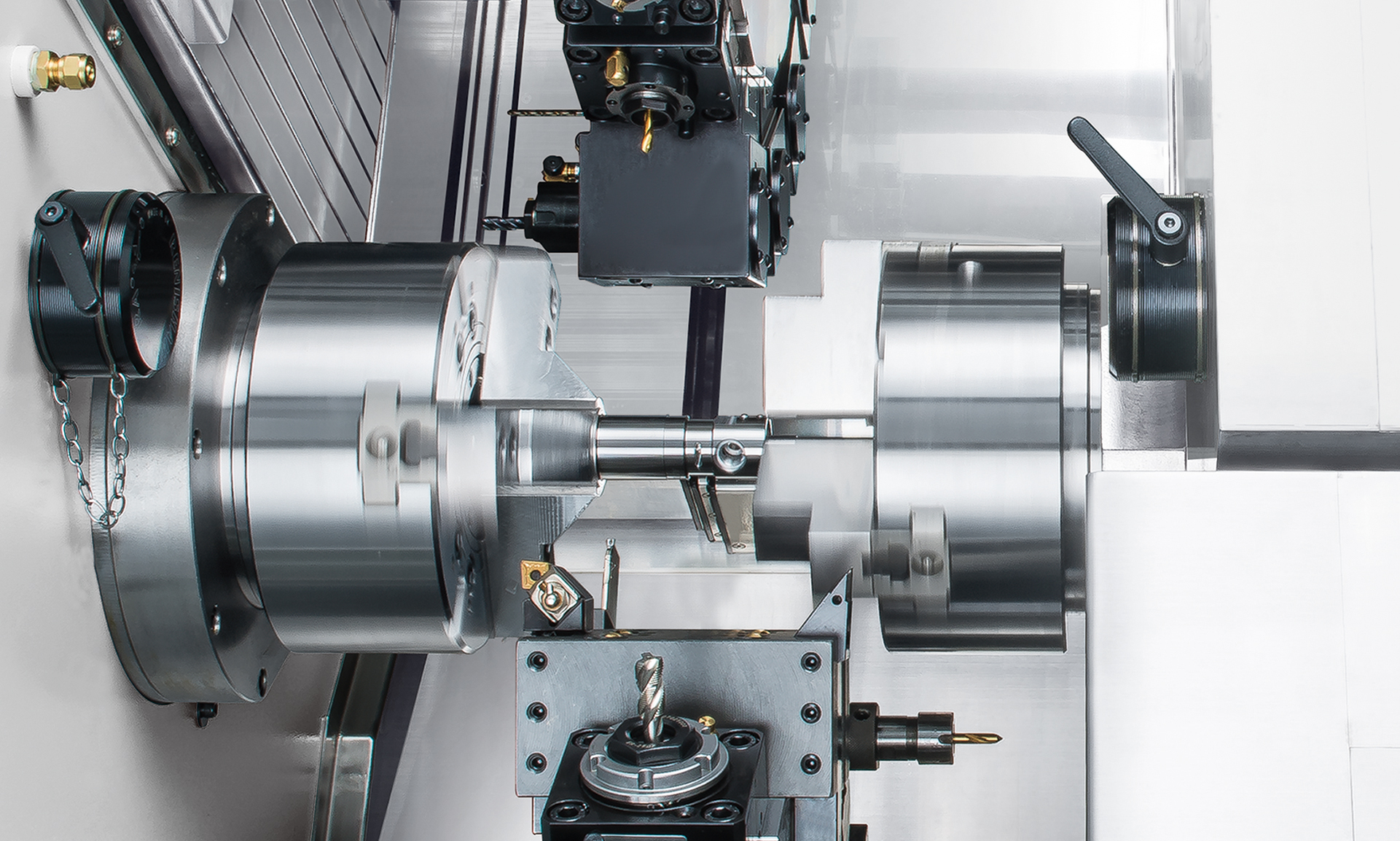

- Spindle 1 & 2 are designed with identical specifications, allowing both front and back machining of the workpiece to be completed on a single GTZ-2600 series.
- The spindle is driven by a 15 kW high-power wide-range motor, delivering a maximum torque of 430 Nm to ensure powerful heavy-duty cutting performance.
- Optional 12 / 16 / 24-station live tooling turret available to meet various machining needs, with live tool speed up to 6,000 rpm.
- The upper turret can be optionally equipped with Y-axis function, with a stroke range of ±50 mm.
Features
High Rigidity Structure
Tooling System
Powerful Cutting Capability
Integrated Machining Functions
Model Variations
- Live tooling turret
- C-axis
- Y-axis
- Live tooling turret
- C-axis
- Y-axis
Lower turret works on spindle 1

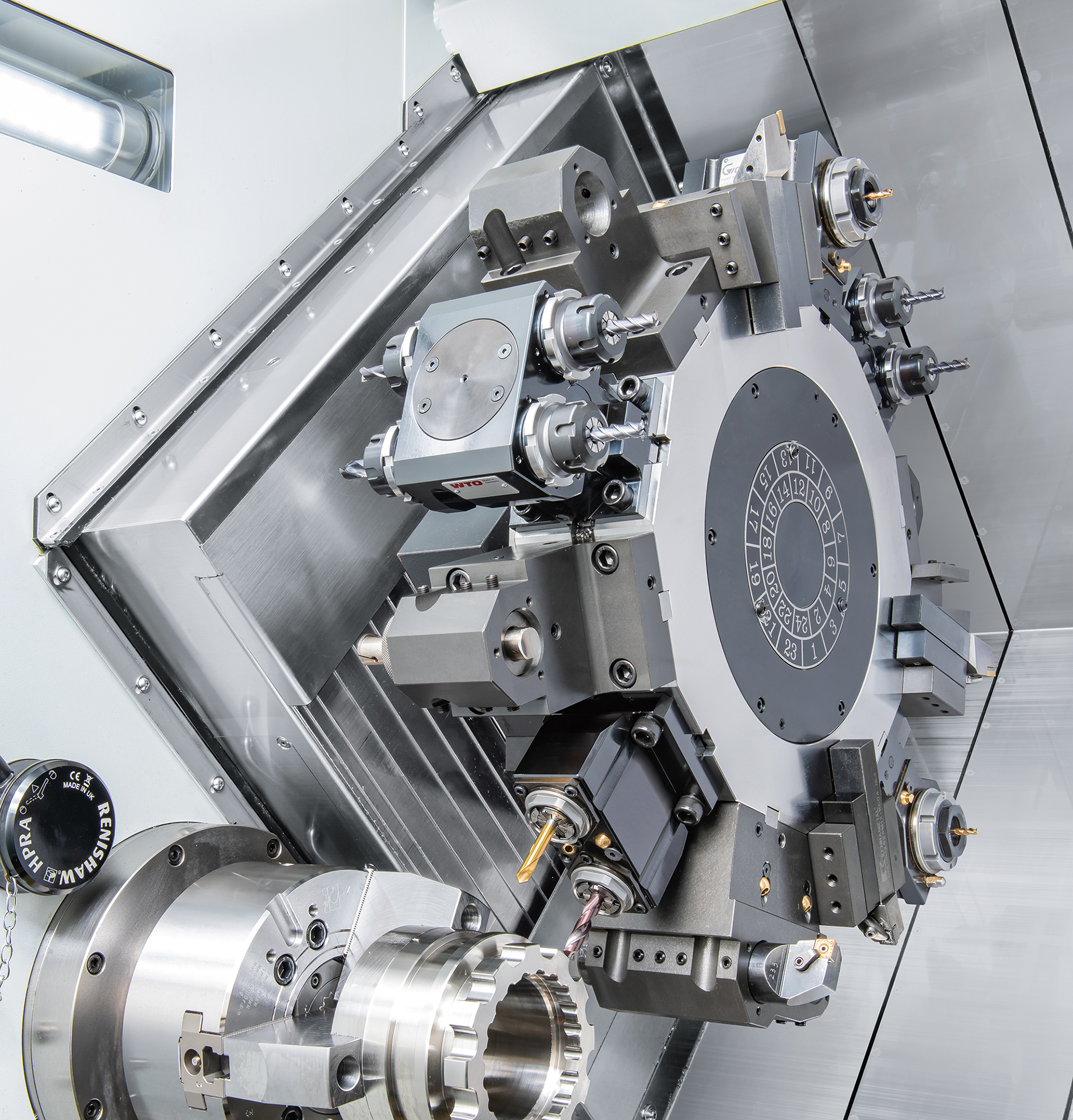

Live Tooling Turret
- All series live tooling turret are designed and manufactured by GOODWAY.
- 12 / 16 / 24 station turret are available to meet any needs.
- High speed servo indexing turret technology, achieving 0.2 second indexing for adjacent stations.
- Ultra-high precise curvic couplings accurately position the turret disk.
- Various GOODWAY live tooling holders are available to tackle any challenging machining tasks.

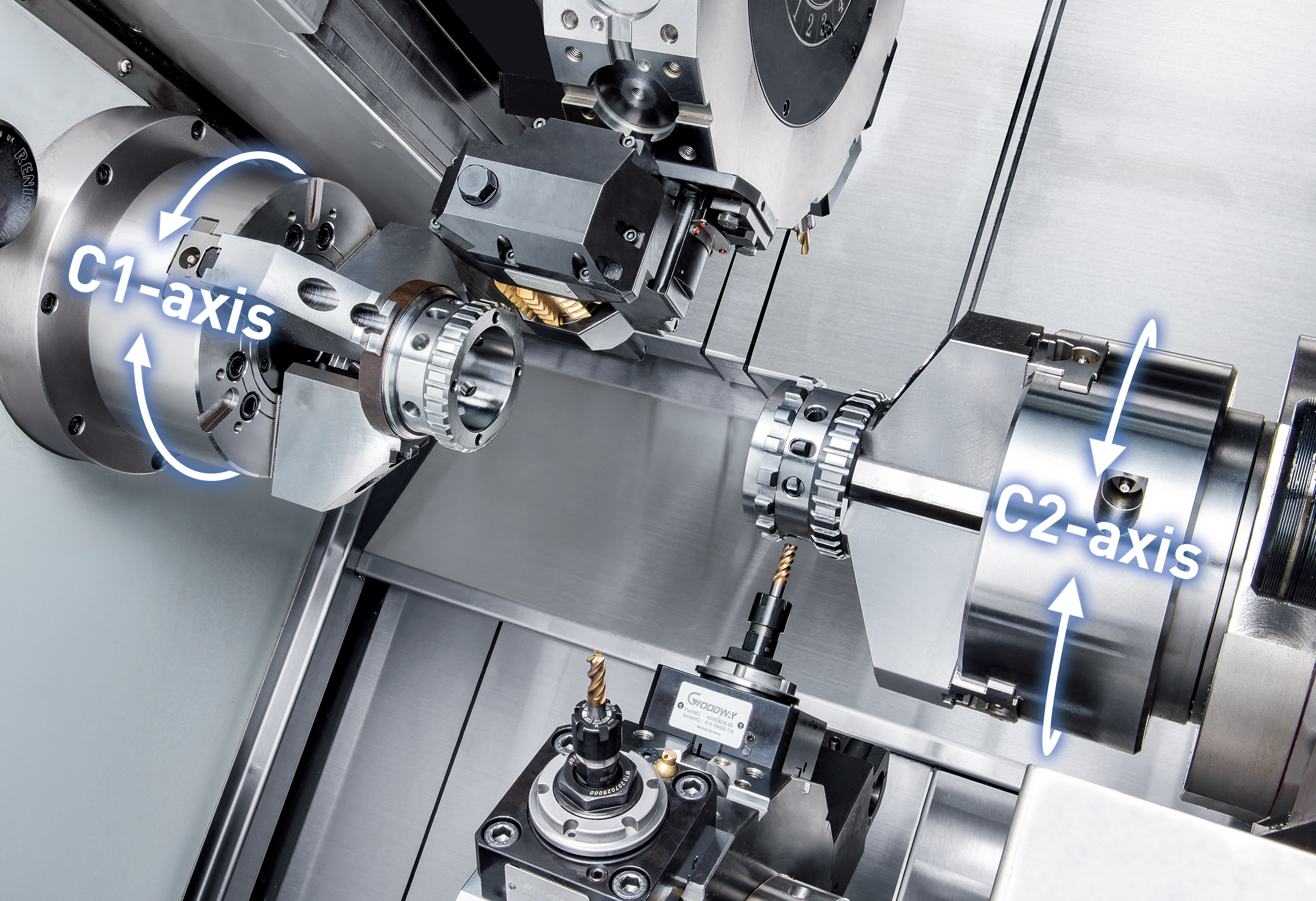

C-axis
- In our highly efficient Cs-axis design, spindle mode can be directly switched to C-axis servo mode. Fast indexing speed, along with a minimum spindle indexing angle of 0.001°, facilitates optimal performance.
- Optional C-axis function can greatly reduce the time required for twin-spindle synchronization, such as in twin spindles synchronic part catching. In average, the efficiency of C-axis synchronization is 5 times more than that of twin spindles synchronization mode.
Y-axis Control Function
- Optional Y-axis control function can achieve simultaneous X, Y, Z and C axes machining, which is capable of working on Y-axis off center milling, drilling and tapping while improving the machining accuracy for multiple parts processing, such as high precision grooving and X-axis off center drilling.
- With sufficient Y-axis travel of 100 mm = ± 50 mm ( 3.93"= ± 1.96" ), any tough processing can be readily accomplished.
( Y-axis control function is available for the upper turret )
