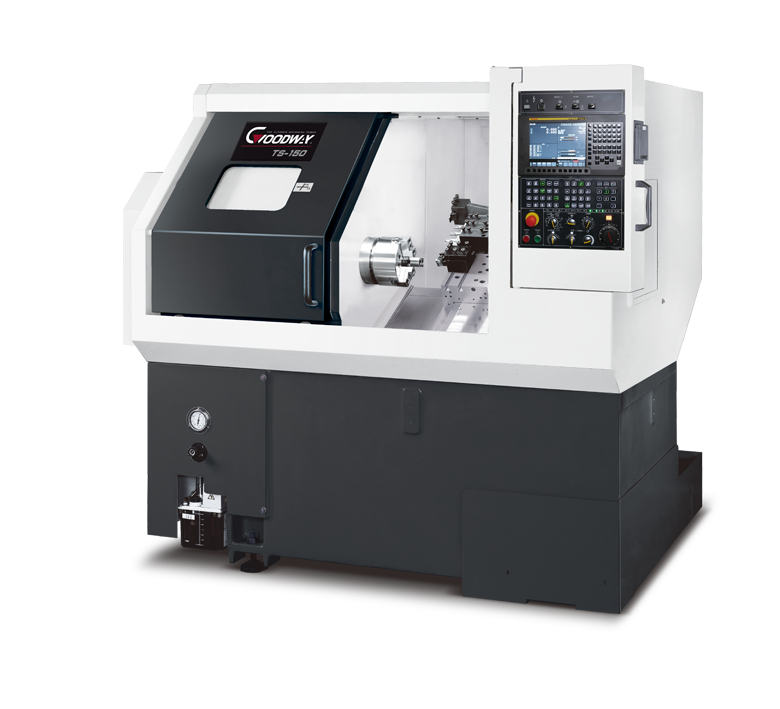

TS-150 High Speed Turning Centers

Chuck size 6" / CL42
Bar capacity Ø45 mm
Max. swing diameter Ø330 mm
Max. turning length 290 mm
( Gang type tool holder )

TS-150

Packed with industry leading technology and top quality components, the GOODWAY TS-150 series turning centers combine strength, speed, and flexibility to bring you The Ultimate Machining Power®. These high speed machines will easily accomplish the demanding turning applications of today and tomorrow. Furthermore, with available live tooling and C-axis capabilities; milling, turning applications may be completed in one single machine.

    Features

  • Extremely compact 2.6 m2 footprint.
  • The ideal model for high-efficiency mass production of small-diameter parts.

    • High Rigidity Structure

  • The box way design also provides the rigidity needed for heavy duty and interrupted turning applications.
  • Low-center-of-gravity 30° slant bed design provides an exceptionally stable foundation for the spindle and tooling system.

    • The Ultimate Machining Power

  • High-reliability spindle system design with a maximum speed of 6,000 rpm, compatible with 6" chuck or 42 mm collet.
  • Standard gang-type tool holder enables rapid tool changes and provides ample cutting rigidity.

    • User-friendly Operation

  • Rear-exit chip conveyor design allows for a more compact machine layout on the production line.

Model Variations

T
  • Servo turret
  • Live tooling turret
  • C-axis
M
  • Servo turret
  • Live tooling turret
  • C-axis

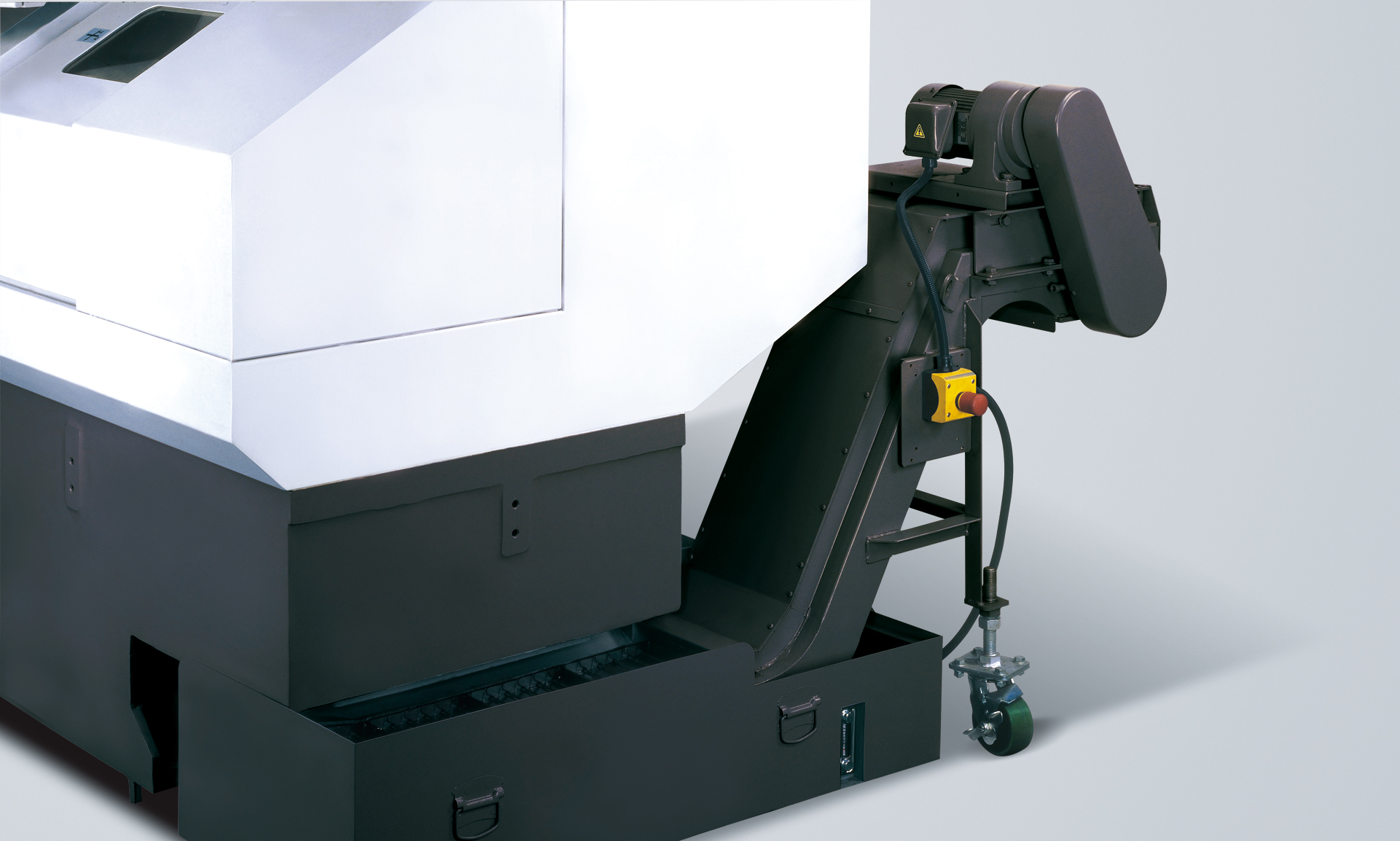

Rear-exit chip removal

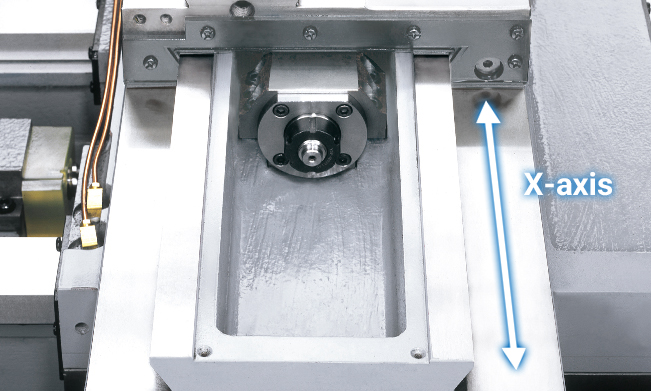

High-rigidity dovetail design on X-axis

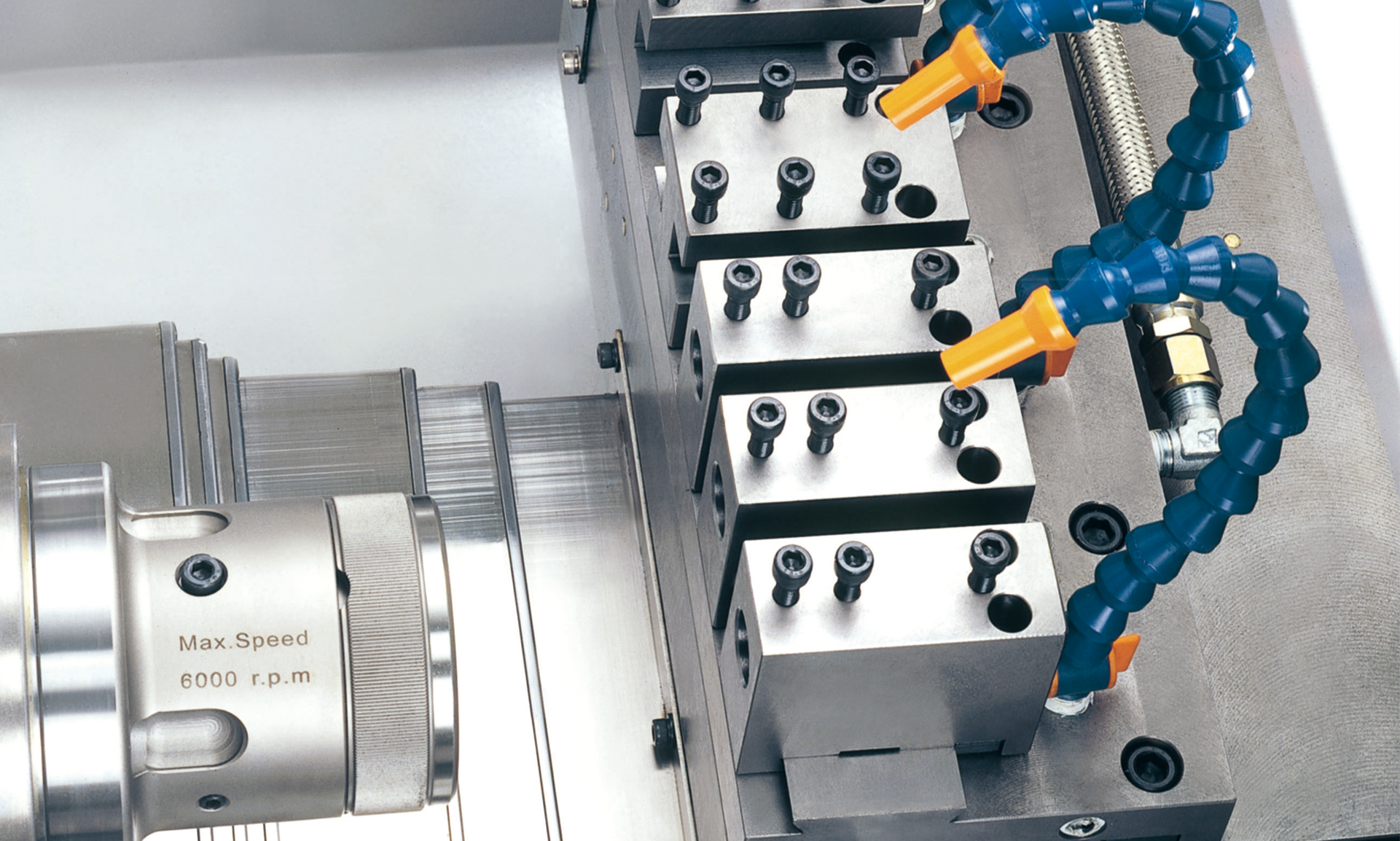

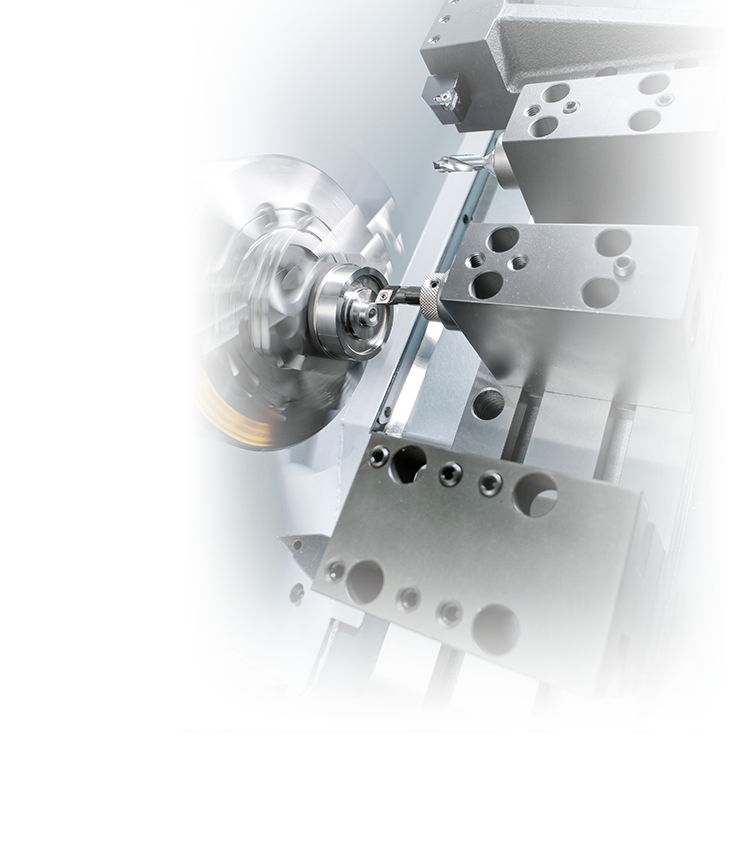

Gang type tool holder

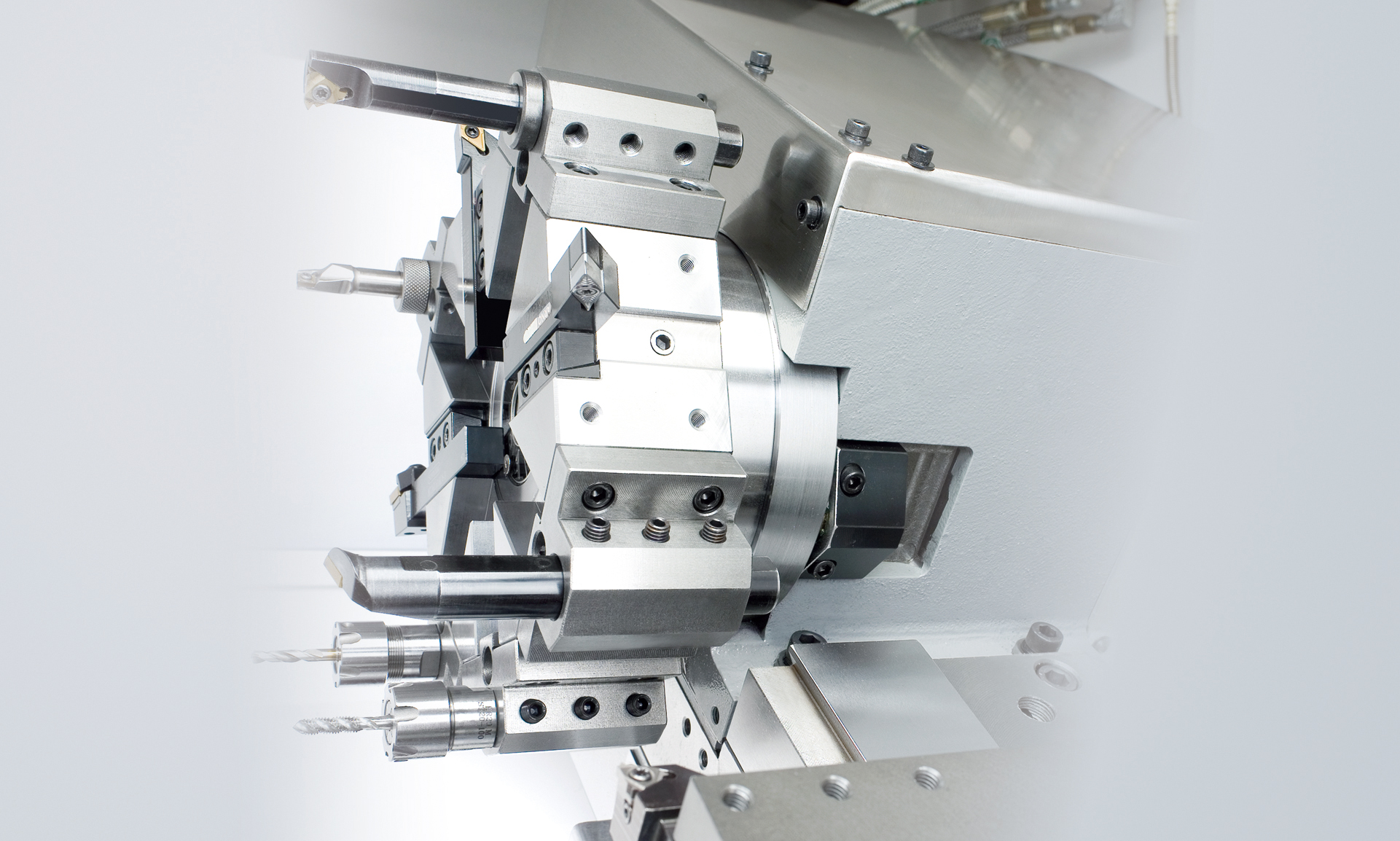

8-station servo indexing turret

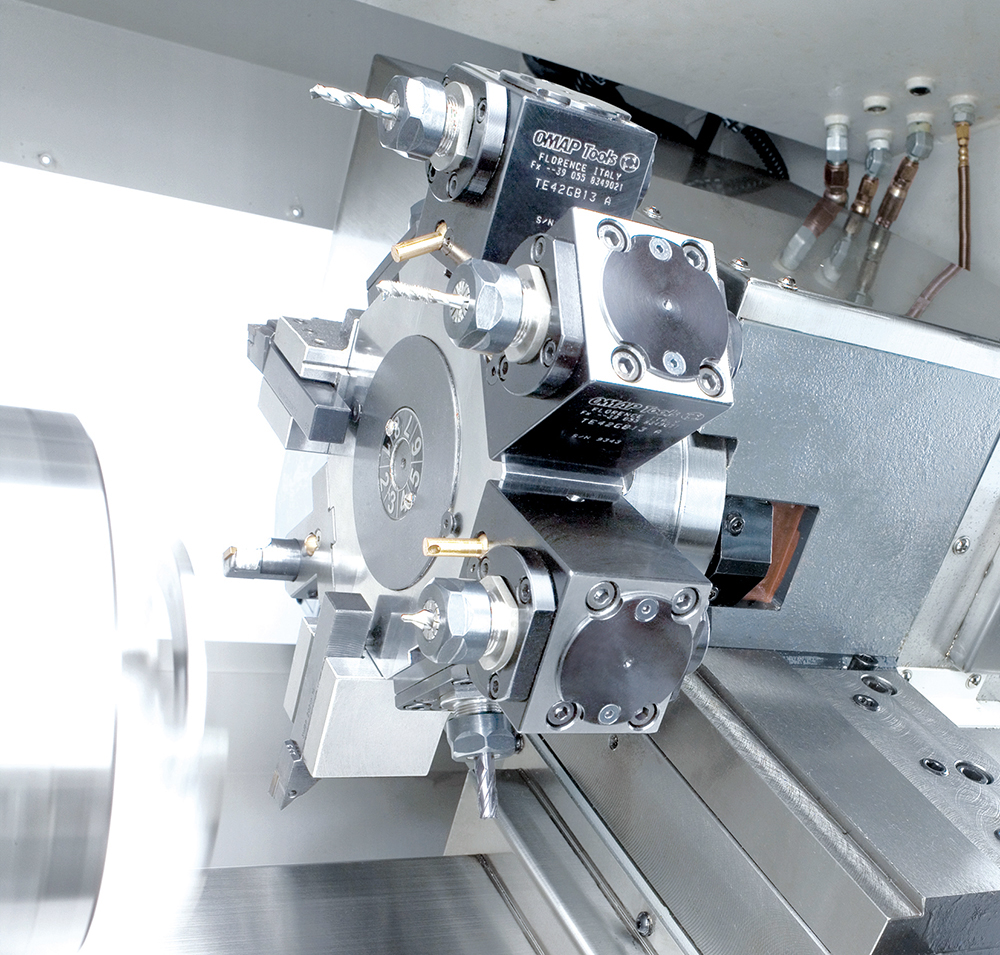

Live Tooling Turret

  • Live tooling and C-axis control capabilities on the TS-150 series allow the machine to perform multiple tasks on a work-piece, such as turning, milling, drilling and tapping. This eliminates manpower and cycle time, while reducing accuracy lost, which will occur if the part is moved from one machine to another.
  • The 8-station GOODWAY live tooling turret offers 8 stations available for live tooling.
  • GOODWAY's live tooling turret utilizes the latest servo indexing technology to achieve 0.2 second indexing times for adjacent stations and 0.5 second for stations at the opposite end of the disk.
    • ( When the optional live tooling turret is selected, the maximum machining length is 170 mm. )
TS-150
TS-150
CAPACITY
Max. swing diameter
mm
Ø330
Max. turning diameter mm Ø200
Max. turning length mm 290
Chuck size 6" or 42 collet chuck
Bar capacity mm Ø45
SPINDLE
Spindle motor output
kW ( cont. )
5.5
Spindle motor output
kW ( 15 min. )
7.5
Max. spindle speed rpm 6,000
X & Z AXES
Max. X-axis travel mm 305
Max. Z-axis travel mm 320
Gang type tool holder
Shank size mm □ 20 / Ø25
TURRET ( opt. )
Stations T 8
LIVE TOOLING TURRET ( opt. )
Stations T 8
Live tooling shank size ER20
The following information may refer to optional equipment.
For details, please contact GOODWAY.
