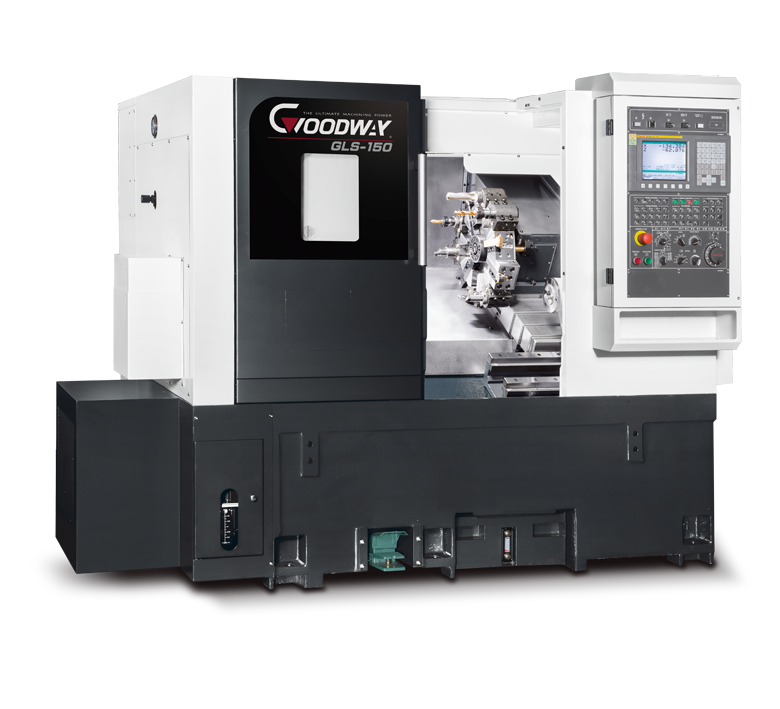

GLS-150
Packed with industry leading technology and top quality components, the GOODWAY GLS-150 series turning centers combine speed, stability and compact machine size to bring you The Ultimate Machining Power®. These high speed machines will easily accomplish the demanding turning applications of today and tomorrow. Furthermore, with optional live tooling, C-axis, milling, turning applications can be completed in one single machine.
- High efficiency and reliability with a footprint of only approximately 4.6 m2.
- Live tooling turret and C-axis control functions are available as optional features.
- The low center of gravity 30° slant bed design ensures maximum structural rigidity.
- High precision linear guide way design is used in X and Z axes to provide the optimum control and efficient movement.
- Two-speed motor-driven spindle meets both heavy cutting and precision machining requirements.
- High-efficiency 12-station servo indexing turret design; opposing tool change takes only 0.5 seconds.
- High-efficiency programmable tailstock.
- The tailstock can be equipped with an MT#4 live center.
- Optional 12-station live tooling turret is available, with a maximum live tooling speed of up to 4,000 rpm.
- The live tooling turret, combined with GOODWAY live tool holders, delivers exceptional milling performance.
Features
High Rigidity Structure
The Ultimate Machining Power
User-friendly Operation

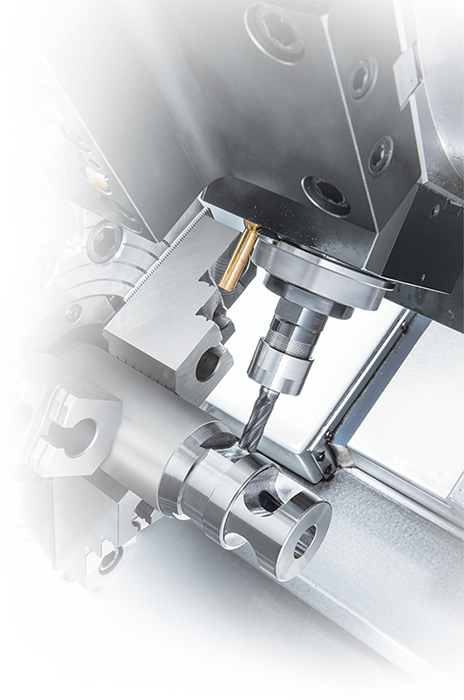

Integrated Machining
Model Variations
M
- Live tooling turret
- C-axis

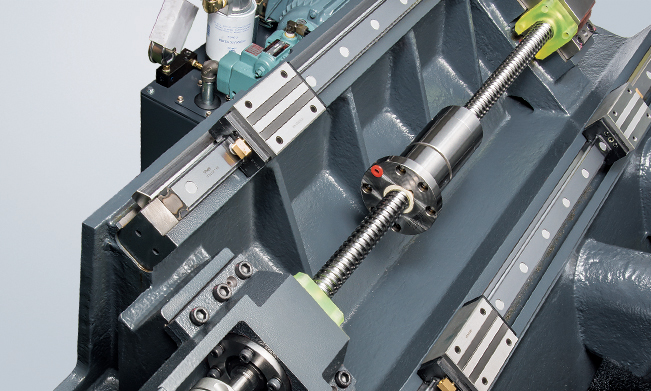

High-speed linear guideway design

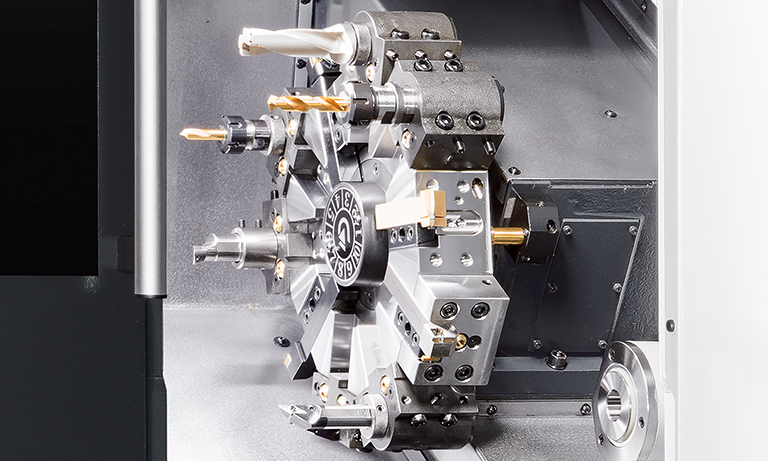

12-station servo turret

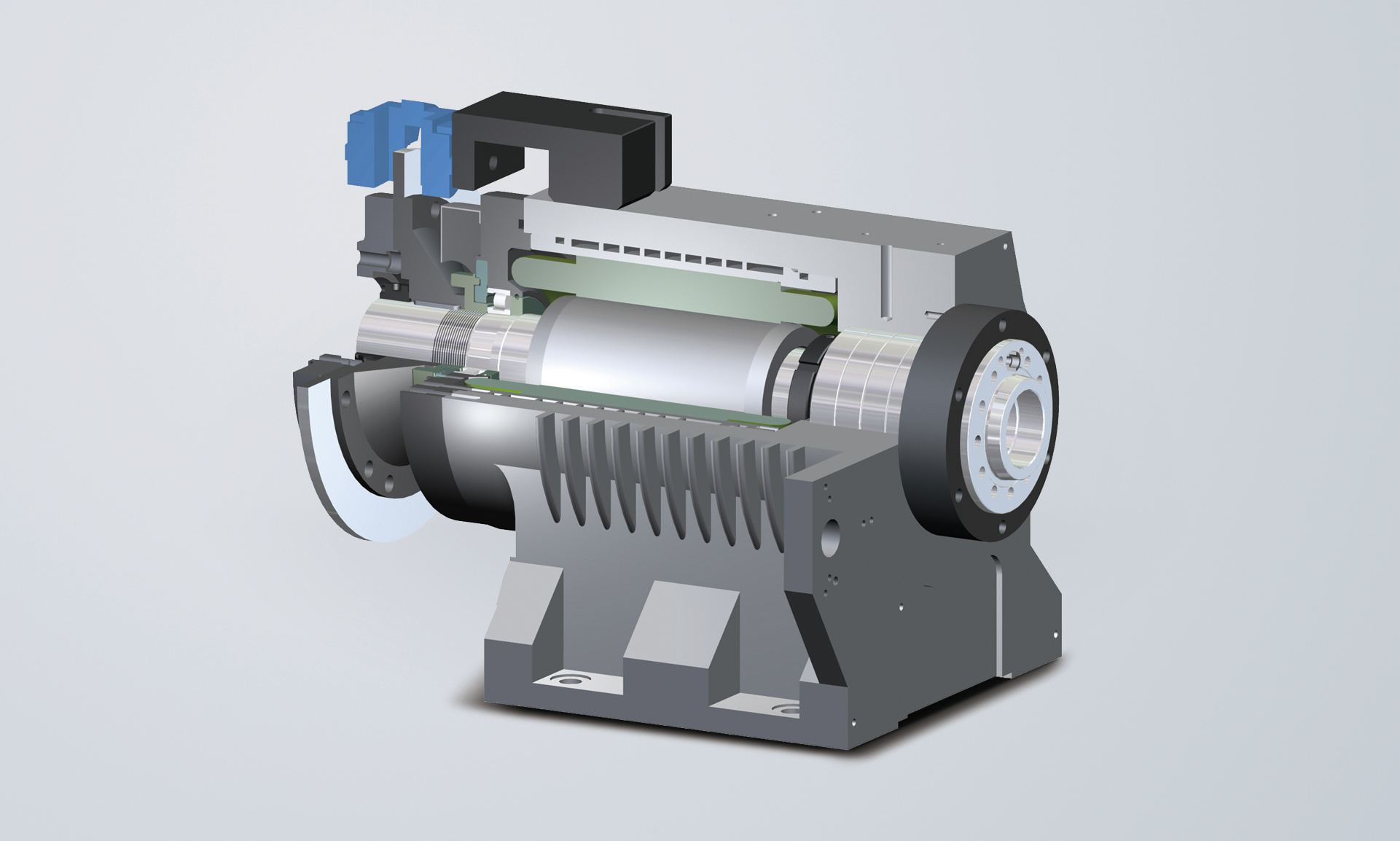

Built-in spindle ( opt. )

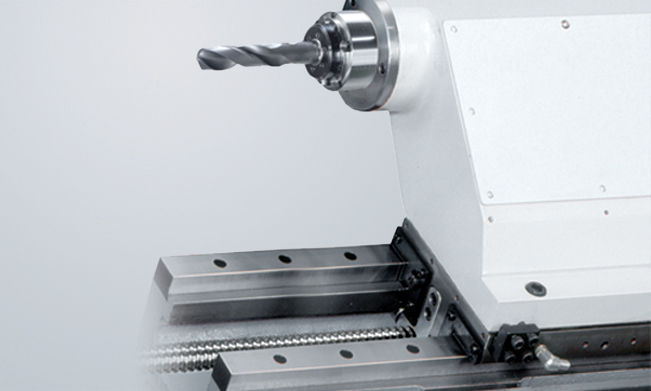

Servo tailstock ( opt. )

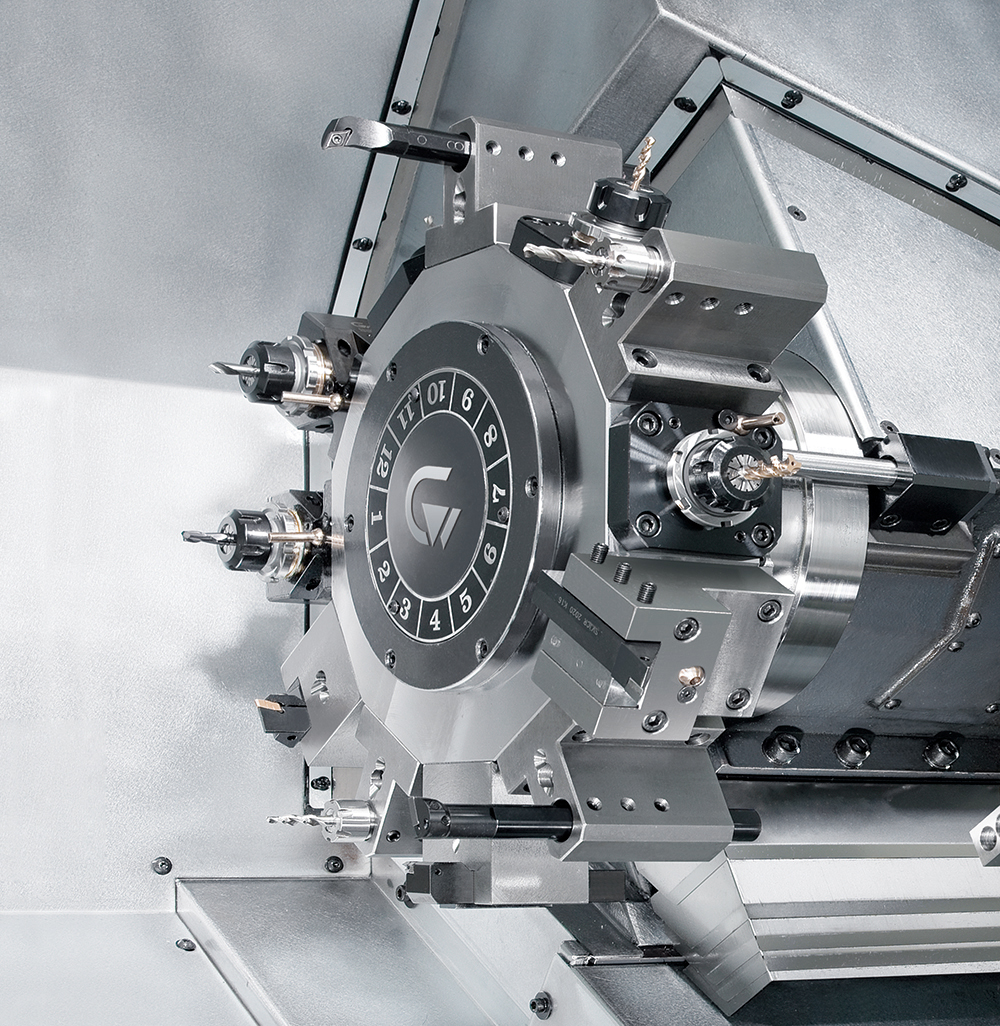

Live Tooling Turret
- The 12-station GOODWAY live tooling turret offers 12 stations available for live tooling ( live tooling tools rotate in working position only ) and features a non-lifting turret disk.
- GOODWAY's live tooling turret utilizes the latest servo indexing technology to achieve 0.2 second indexing times for adjacent stations and 0.5 second for stations at the opposite end of the disk.
- With the latest technology, live tooling is driven by an AC servo motor to provide ample power, in the form of torque. Now, even the toughest of jobs may be tackled without a sweat.
