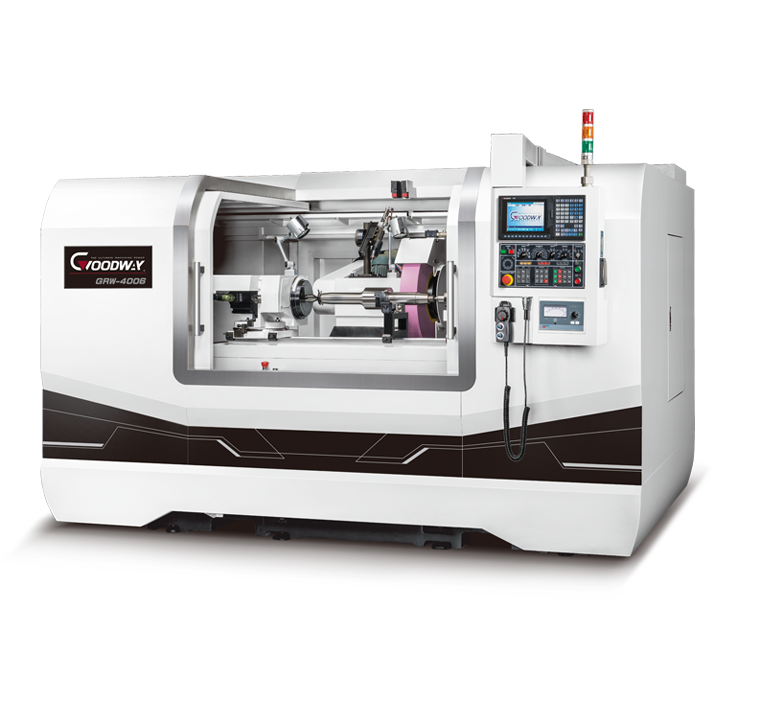

GRW Traveling Head
Cylindrical Grinding Machine

Max. distance between centers 2,030 mm
( GRW-4020 )
Max. swing over table Ø420 mm
Max. grinding diameter Ø400 mm

GRW

    Advanced Design

  • The specially designed GRW series form GOODWAY is suitable for both plunge grinding and angular grinding.

    • High Rigidity Structure

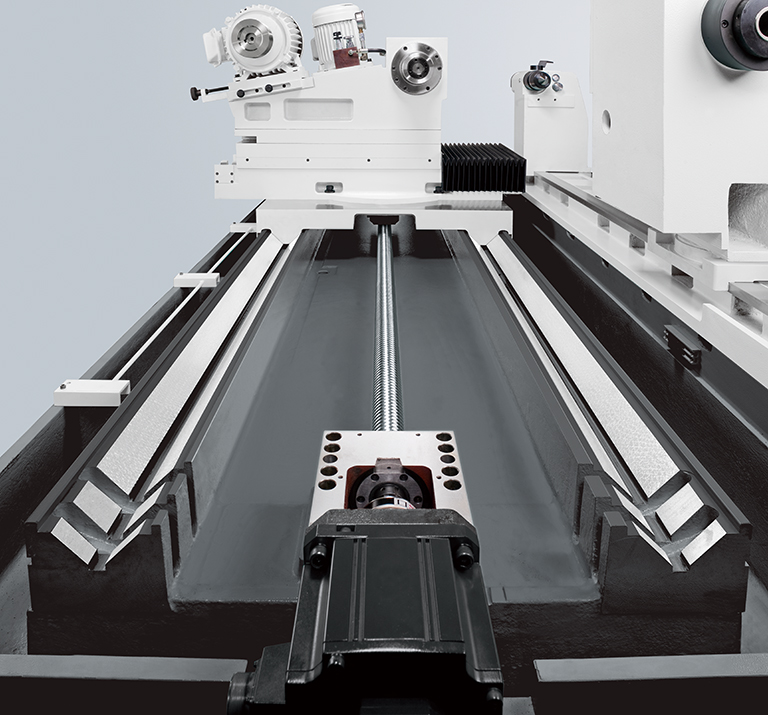

  • X-axis with hand scraping extra large V type guide way to ensure the best dynamic accuracy and balance loading.
  • Hardened precision ground ball screws ensure the highest accuracy and durability possible.

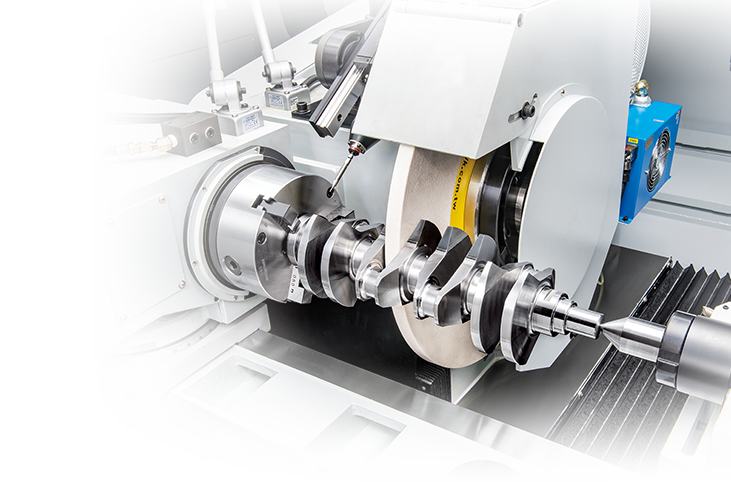

    • Grinding Examples

GRW-4006 GRW-4010 GRW-4015 GRW-4020
Max. distance between centers mm 630 1,030 1,530 2,030
Max. swing over table mm Ø420
Max. load between centers kg 750
Max. grinding diameter mm Ø400
Wheel spindle swivel angle 0° ~ 35°
Wheel O.D mm Ø610
Wheel width mm MAX.100
Wheel I.D. mm Ø203
Work table swivel angle -3° ~ +12° -3° ~ +8°
Select specification:
GRW-4006
Max. distance between centers mm 630
Max. swing over table mm Ø420
Max. load between centers kg 750
Max. grinding diameter mm Ø400
Wheel spindle swivel angle 0° ~ 35°
Wheel O.D mm Ø610
Wheel width mm MAX.100
Wheel I.D. mm Ø203
Work table swivel angle -3° ~ +12°
GRW-4010
Max. distance between centers mm 1,030
Max. swing over table mm Ø420
Max. load between centers kg 750
Max. grinding diameter mm Ø400
Wheel spindle swivel angle 0° ~ 35°
Wheel O.D mm Ø610
Wheel width mm MAX.100
Wheel I.D. mm Ø203
Work table swivel angle -3° ~ +8°
GRW-4015
Max. distance between centers mm 1,530
Max. swing over table mm Ø420
Max. load between centers kg 750
Max. grinding diameter mm Ø400
Wheel spindle swivel angle 0° ~ 35°
Wheel O.D mm Ø610
Wheel width mm MAX.100
Wheel I.D. mm Ø203
Work table swivel angle -3° ~ +8°
GRW-4020
Max. distance between centers mm 2,030
Max. swing over table mm Ø420
Max. load between centers kg 750
Max. grinding diameter mm Ø400
Wheel spindle swivel angle 0° ~ 35°
Wheel O.D mm Ø610
Wheel width mm MAX.100
Wheel I.D. mm Ø203
Work table swivel angle -3° ~ +8°
