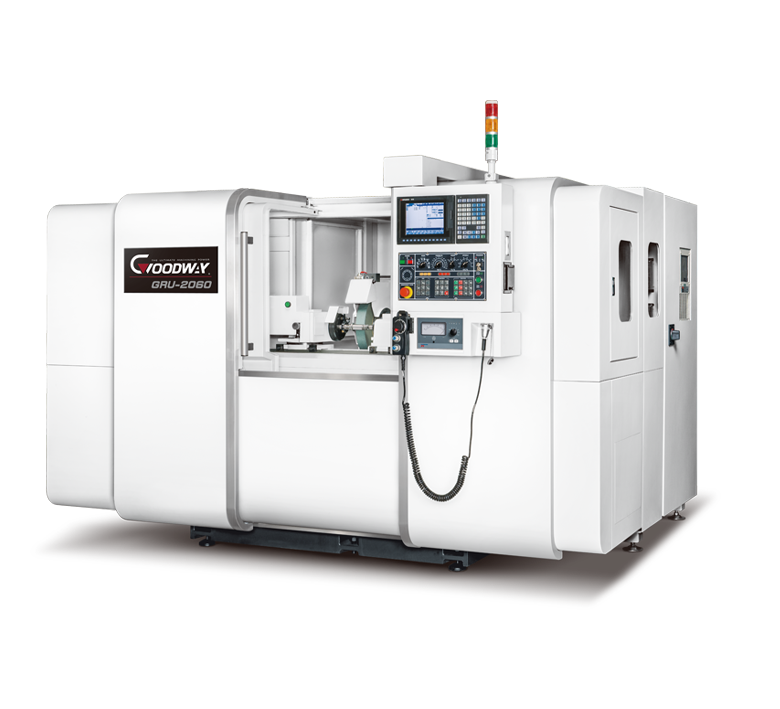

GRU Plunge
Cylindrical Grinding Machine

Max. distance between centers 410 / 610 mm
Max. swing over table Ø200 mm
Max. grinding diameter Ø190 mm

GRU

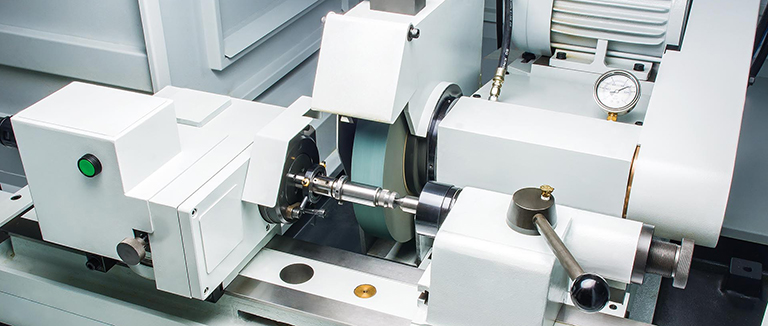

    Wheel Spindle

  • The grinding wheel spindle designs by high rigidity, low temperature raise and non-contact hydro-static bearing which makes accuracy less than 0.001 mm.

    • Workpiece Spindle

  • Workpiece spindle is driven by servo motor which provides variable speed change.
  • Both fixed type and non-fixed type spindles are available to meet various applications.
  • Optional I.D. grinding wheel provides more flexible applications.

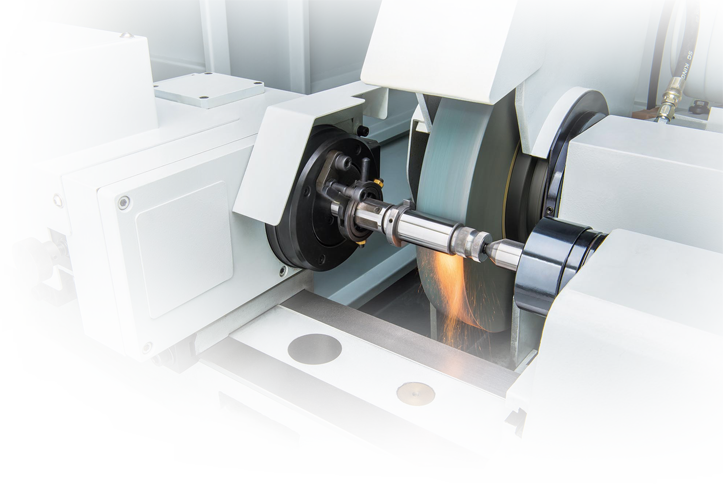

    • Grinding Examples

GRU-2040 GRU-2060
Max. distance between centers mm 410 610
Max. swing over table mm Ø200
Max. load between centers kg 80
Max. grinding diameter mm Ø190
Wheel O.D mm Ø405
Wheel width mm MAX.80
Wheel I.D. mm Ø127
Select specification:
GRU-2040
Max. distance between centers mm 410
Max. swing over table mm Ø200
Max. load between centers kg 80
Max. grinding diameter mm Ø190
Wheel O.D mm Ø405
Wheel width mm MAX.80
Wheel I.D. mm Ø127
GRU-2060
Max. distance between centers mm 610
Max. swing over table mm Ø200
Max. load between centers kg 80
Max. grinding diameter mm Ø190
Wheel O.D mm Ø405
Wheel width mm MAX.80
Wheel I.D. mm Ø127
